Technical Specifications
Onsemi MC74VHC1GT14DT1G technical specifications.
General
| Package/Case | SOT-23-5 |
| High Level Output Current | -8mA |
| Input Type | SCHMITT TRIGGER |
| Lead Free | Lead Free |
| Logic Function | Inverter |
| Low Level Output Current | 8mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Gates | 1 |
| Number of Inputs | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Propagation Delay | 10.6ns |
| Quiescent Current | 1uA |
| Series | 74VHC |
| Technology | CMOS |
| Turn-On Delay Time | 20.5ns |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MC74VHC1GT14DT1G Datasheet
Download the complete datasheet for Onsemi MC74VHC1GT14DT1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

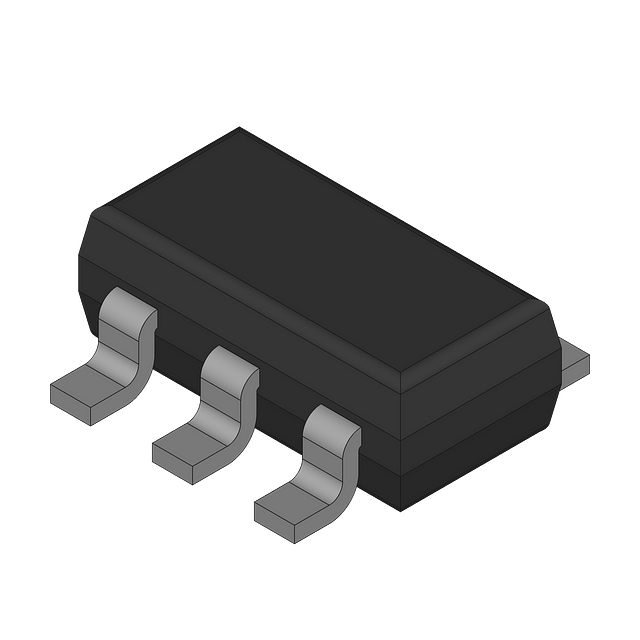

Product Images
