Technical Specifications
Onsemi MC74VHCT245ADTR2 technical specifications.
General
| Package/Case | TSSOP |
| High Level Output Current | 8mA |
| Lead Free | Contains Lead |
| Logic Function | Transceiver, Inverting |
| Low Level Output Current | 8mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 450mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Circuits | 8 |
| Number of Elements | 1 |
| Output Type | 3-STATE |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 8.7ns |
| RoHS Compliant | Yes |
| Series | 74VHCT |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MC74VHCT245ADTR2 Datasheet
Download the complete datasheet for Onsemi MC74VHCT245ADTR2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

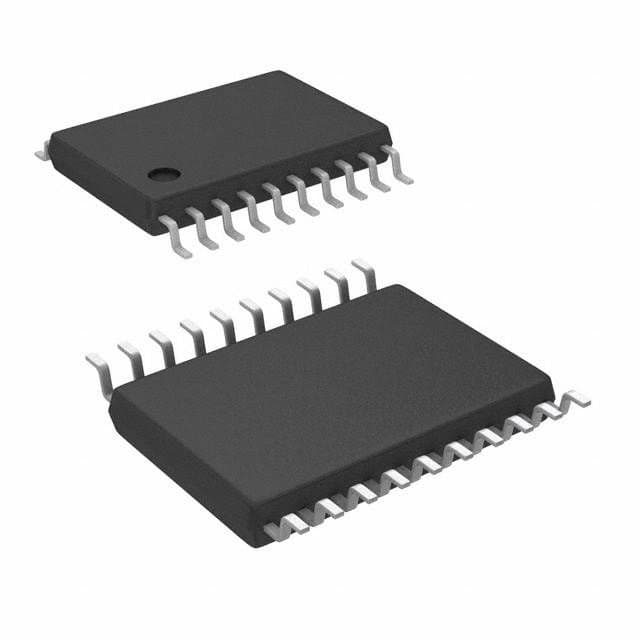

Product Images
