Positive fixed output linear voltage regulator, 12V output voltage, 1A maximum output current. Features a 2V dropout voltage, 4% accuracy, and a 71dB PSRR. Operates with input voltages from 14V to 35V, with a maximum output current of 1A. Housed in a DPAK surface mount package, this RoHS compliant component is supplied on a 2000-piece tape and reel.
PackageDPAK
Voltage Rating12V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi MC7812ECDTX technical specifications.
General
| Accuracy | 4% |
| Package/Case | DPAK |
| Current Rating | 1A |
| Dropout Voltage | 2V |
| Height | 2.38mm |
| Lead Free | Lead Free |
| Length | 6.73mm |
| Max Input Voltage | 35V |
| Min Input Voltage | 14V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1A |
| Min Output Voltage | 12V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 12V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 71dB |
| Quiescent Current | 8mA |
| Reference Voltage | 35V |
| RoHS Compliant | Yes |
| Tolerance | 4% |
| Voltage Rating | 12V |
| Weight | 0.26037g |
| Width | 6.22mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MC7812ECDTX Datasheet
Download the complete datasheet for Onsemi MC7812ECDTX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

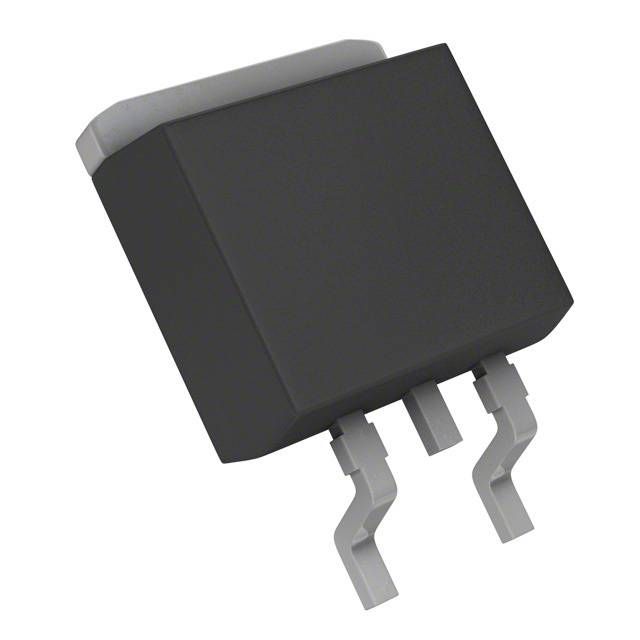

Product Images
