Positive fixed output linear voltage regulator, 5V nominal output voltage, 500mA maximum output current. Features 2% accuracy, 80dB high Power Supply Rejection Ratio (PSRR), and a 2V dropout voltage. Operates with input voltages from 7V to 35V, with a maximum operating temperature of 125°C and a minimum of -40°C. Packaged in a TO-220-3 through-hole mount package, this RoHS compliant component is supplied in a 50-piece rail/tube.
PackageTO-220-3
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Onsemi MC78M05ABTG technical specifications.
General
| Accuracy | 2% |
| Package/Case | TO-220-3 |
| Dropout Voltage | 2V |
| Halogen Free | Halogen Free |
| Height | 15.75mm |
| Lead Free | Lead Free |
| Length | 10.28mm |
| Max Input Voltage | 35V |
| Min Input Voltage | 7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Mount | Through Hole |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 500mA |
| Output Type | Fixed |
| Output Voltage | 5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 80dB |
| Quiescent Current | 6mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 4.82mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MC78M05ABTG Datasheet
Download the complete datasheet for Onsemi MC78M05ABTG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

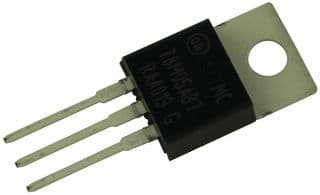

Product Images
