PolarityNPN
Quick Jump:
Technical Specifications
Onsemi MCH4016-TL-H technical specifications.
General
Collector Base Voltage (VCBO)
20V
Collector Emitter Breakdown Voltage
12V
Gain
18dB
Lead Free
Lead Free
Max Collector Current
30mA
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
350mW
Package Quantity
3000
Packaging
Tape and Reel
Polarity
NPN
Radiation Hardening
No
RoHS Compliant
Yes
Transition Frequency
10GHz
Compliance
RoHS
Compliant
Datasheet
Onsemi MCH4016-TL-H Datasheet
Download the complete datasheet for Onsemi MCH4016-TL-H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

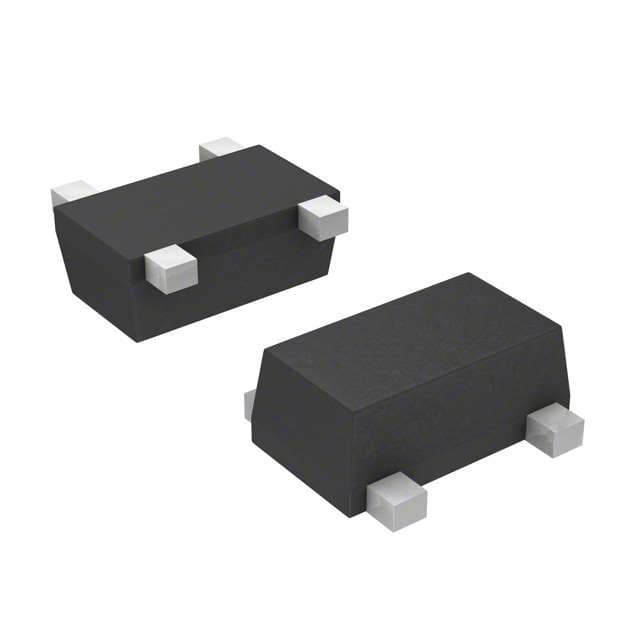

Product Images
