The MJ15002G is a PNP bipolar junction transistor with a collector-emitter breakdown voltage of 140V and a maximum collector current of 15A. It features a TO-204-3 package and operates over a temperature range of -65°C to 150°C. The transistor is RoHS compliant and lead-free.
PackageTO-204-3
Current Rating15A
PolarityPNP
Quick Jump:
Technical Specifications
Onsemi MJ15002G technical specifications.
General
| Package/Case | TO-204-3 |
| Collector Base Voltage (VCBO) | 140V |
| Collector Emitter Breakdown Voltage | 140V |
| Collector Emitter Saturation Voltage | 1V |
| Collector-emitter Voltage-Max | 1V |
| Current Rating | 15A |
| Emitter Base Voltage (VEBO) | 5V |
| Gain Bandwidth Product | 2MHz |
| hFE Min | 25 |
| Lead Free | Lead Free |
| Max Collector Current | 15A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 200W |
| Package Quantity | 100 |
| Packaging | Tray |
| Polarity | PNP |
| RoHS Compliant | Yes |
| Transition Frequency | 2MHz |
| DC Rated Voltage | -140V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MJ15002G Datasheet
Download the complete datasheet for Onsemi MJ15002G to view detailed technical specifications.
No datasheet is available for this part.

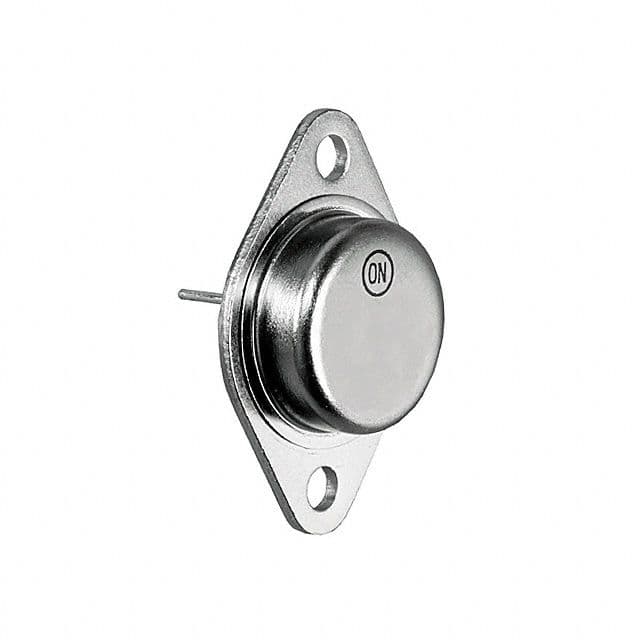

Product Images
