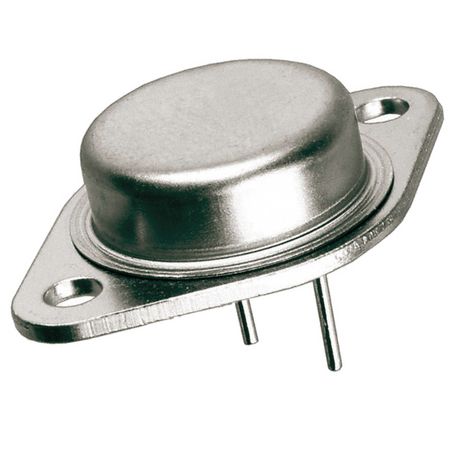

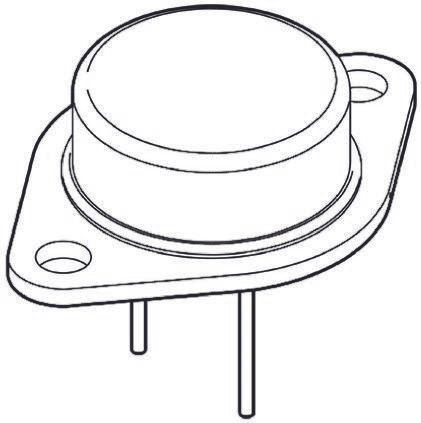

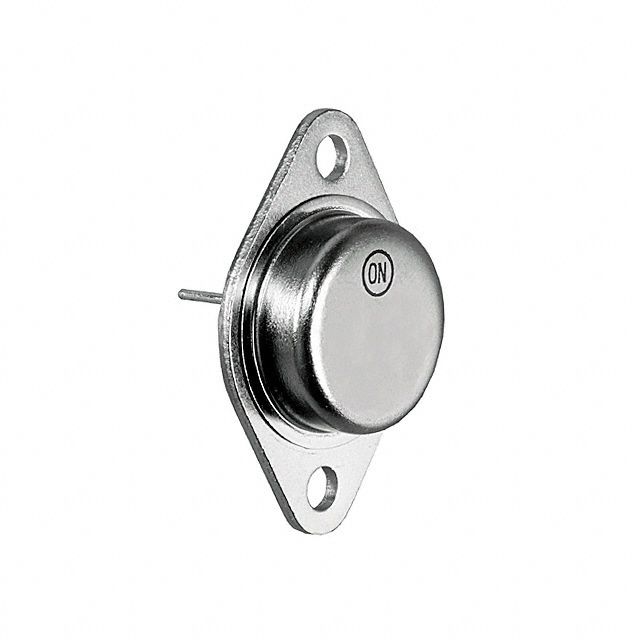

PNP Bipolar Junction Transistor (BJT) with a maximum collector current of 30A and a collector-emitter voltage of 90V. Features a 2MHz transition frequency and a minimum hFE of 25. This through-hole component is housed in a TO-204AA package, offering a maximum power dissipation of 200W and operating temperature range of -65°C to 200°C. It is RoHS compliant and supplied in a tray.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi MJ4502G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-204AA |
| Collector Base Voltage (VCBO) | 100V |
| Collector Emitter Breakdown Voltage | 100V |
| Collector Emitter Saturation Voltage | 800mV |
| Collector Emitter Voltage (VCEO) | 90V |
| Collector-emitter Voltage-Max | 800mV |
| Current Rating | 30A |
| Emitter Base Voltage (VEBO) | 4V |
| Frequency | 2MHz |
| Gain Bandwidth Product | 2MHz |
| Height | 1.05inch |
| hFE Min | 25 |
| Lead Free | Lead Free |
| Length | 1.55inch |
| Max Collector Current | 30A |
| Max Frequency | 2MHz |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 200W |
| Mount | Through Hole |
| Number of Elements | 1 |
| Package Quantity | 100 |
| Packaging | Tray |
| Polarity | PNP |
| Power Dissipation | 200W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Transition Frequency | 2MHz |
| DC Rated Voltage | -100V |
| Width | 0.335inch |
| RoHS | Compliant |
