Technical Specifications

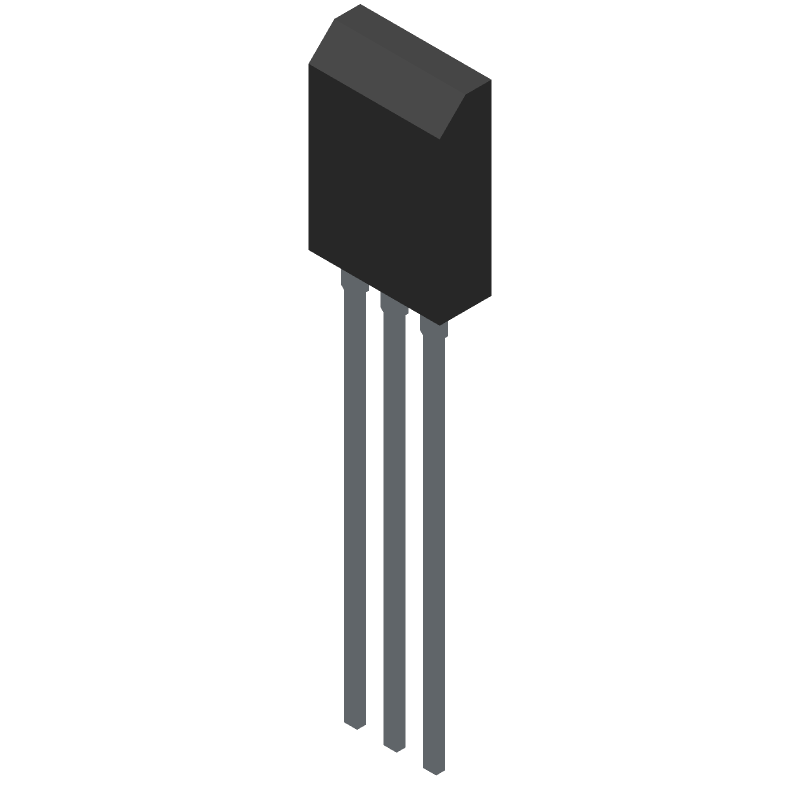

Onsemi MJE13003 technical specifications.
General
| Package/Case | TO-126-3 |
| Collector Base Voltage (VCBO) | 100V |
| Collector Emitter Breakdown Voltage | 400V |
| Collector Emitter Saturation Voltage | 500mV |
| Collector-emitter Voltage-Max | 3V |
| Current Rating | 1.5A |
| Emitter Base Voltage (VEBO) | 5V |
| Gain Bandwidth Product | 3MHz |
| hFE Min | 8 |
| Lead Free | Contains Lead |
| Max Collector Current | 1.5A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 1.4W |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Bulk |
| Polarity | NPN |
| RoHS Compliant | No |
| Series | SWITCHMODE™ |
| Transition Frequency | 10MHz |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi MJE13003 Datasheet
Download the complete datasheet for Onsemi MJE13003 to view detailed technical specifications.
