3V Zener diode in a compact SOD-323-2 package, offering 200mW power dissipation with a 7% voltage tolerance. Features a low impedance of 100 Ohms and a maximum reverse leakage current of 10µA. Operates across a wide temperature range from -65°C to 150°C, with a maximum power dissipation of 300mW. This RoHS compliant component is supplied on a 3000-piece tape and reel.
PackageSOD-323-2
Voltage Rating3V
Power200mW
Quick Jump:
Technical Specifications
Onsemi MM3Z3V0T1G technical specifications.
General
| Package/Case | SOD-323-2 |
| Height | 1mm |
| Impedance | 100R |
| Lead Free | Lead Free |
| Length | 1.8mm |
| Material | Plastic |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 300mW |
| Max Reverse Current | 10uA |
| Max Reverse Leakage Current | 10uA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 7% |
| DC Rated Voltage | 3V |
| Voltage Tolerance | 7% |
| Width | 1.35mm |
| Working Voltage | 3V |
| Zener Current | 10mA |
| Zener Voltage | 3V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MM3Z3V0T1G Datasheet
Download the complete datasheet for Onsemi MM3Z3V0T1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

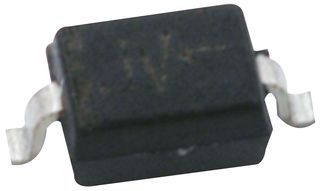

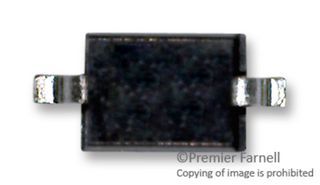

Product Images
