Single Zener Diode with a 3.3V working voltage and 6% tolerance. Features 300mW maximum power dissipation, 95 Ohm impedance, and a maximum reverse leakage current of 5uA. Packaged in a compact SOD-323-2 surface-mount case, this RoHS and Lead-Free component operates across a wide temperature range of -65°C to 150°C.
PackageSOD-323-2
Voltage Rating3.3V
Power200mW
Quick Jump:
Technical Specifications
Onsemi MM3Z3V3T1G technical specifications.
General
| Package/Case | SOD-323-2 |
| Diode Type | ZENER |
| Halogen Free | Halogen Free |
| Height | 0.039inch |
| Impedance | 95R |
| Lead Free | Lead Free |
| Length | 0.07inch |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 300mW |
| Max Reverse Current | 5uA |
| Max Reverse Leakage Current | 5uA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 6% |
| DC Rated Voltage | 3.3V |
| Voltage Tolerance | 6% |
| Width | 0.053inch |
| Working Voltage | 3.3V |
| Zener Current | 10mA |
| Zener Voltage | 3.3V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MM3Z3V3T1G Datasheet
Download the complete datasheet for Onsemi MM3Z3V3T1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

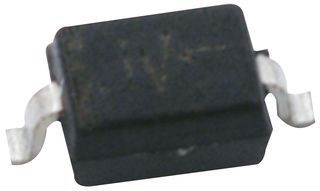

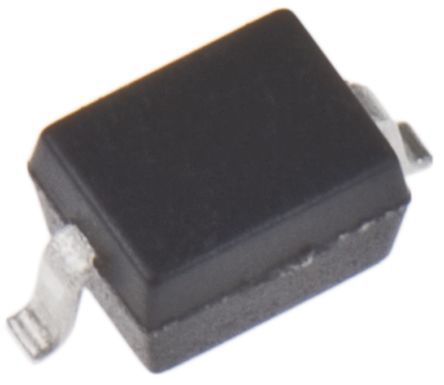

Product Images
