The Onsemi MM3Z3V6ST1G is a surface mount zener diode with a rated voltage of 3.6V and a tolerance of 3%. It has a maximum power dissipation of 300mW and a zener current of 10mA. The diode operates over a temperature range of -65°C to 150°C and is RoHS compliant. It is packaged in a R-PDSO-G2 package and available in quantities of 3000.
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Onsemi MM3Z3V6ST1G technical specifications.
General
| Impedance | 90R |
| Lead Free | Lead Free |
| Material | Plastic |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 300mW |
| Max Reverse Leakage Current | 5uA |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| RoHS Compliant | Yes |
| Tolerance | 3% |
| DC Rated Voltage | 3.6V |
| Voltage Tolerance | 3% |
| Zener Current | 10mA |
| Zener Voltage | 3.6V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MM3Z3V6ST1G Datasheet
Download the complete datasheet for Onsemi MM3Z3V6ST1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

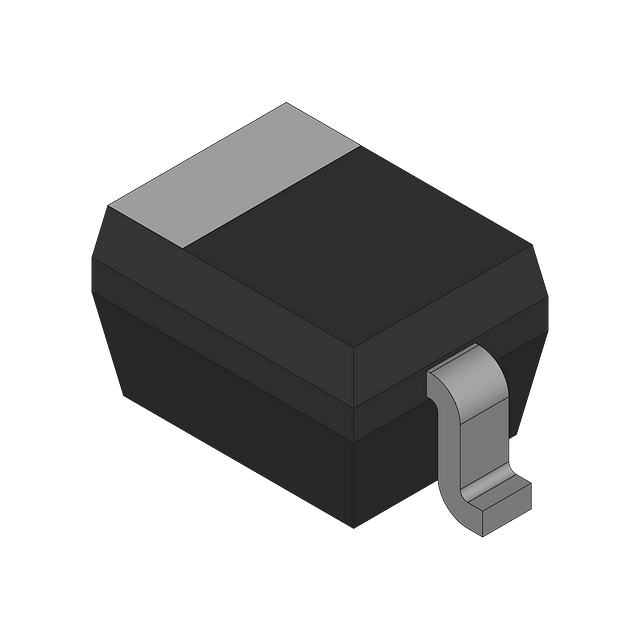

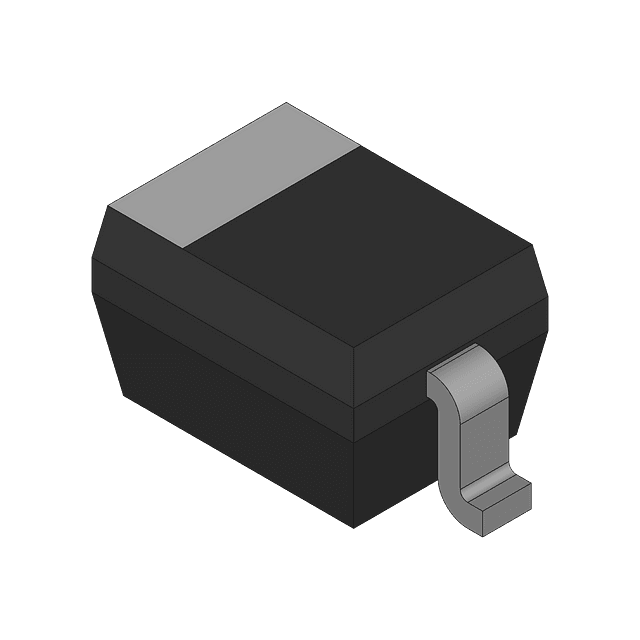

Product Images
