3.9V Zener Diode, 200mW power dissipation, featuring a 5% voltage tolerance. This component is housed in a compact SOD-323-2 package, measuring 1.8mm in length, 1.35mm in width, and 1mm in height. It operates within a temperature range of -65°C to 150°C and offers a maximum reverse leakage current of 3uA. The diode is supplied on a 3000-piece tape and reel, is RoHS compliant, and lead-free.
PackageSOD-323-2
Voltage Rating3.9V
Power200mW
Quick Jump:
Technical Specifications
Onsemi MM3Z3V9T1G technical specifications.
General
| Package/Case | SOD-323-2 |
| Height | 1mm |
| Impedance | 90R |
| Lead Free | Lead Free |
| Length | 1.8mm |
| Material | Plastic |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 300mW |
| Max Reverse Current | 3uA |
| Max Reverse Leakage Current | 3uA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| DC Rated Voltage | 3.9V |
| Voltage Tolerance | 5% |
| Width | 1.35mm |
| Working Voltage | 3.9V |
| Zener Current | 10mA |
| Zener Voltage | 3.9V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MM3Z3V9T1G Datasheet
Download the complete datasheet for Onsemi MM3Z3V9T1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

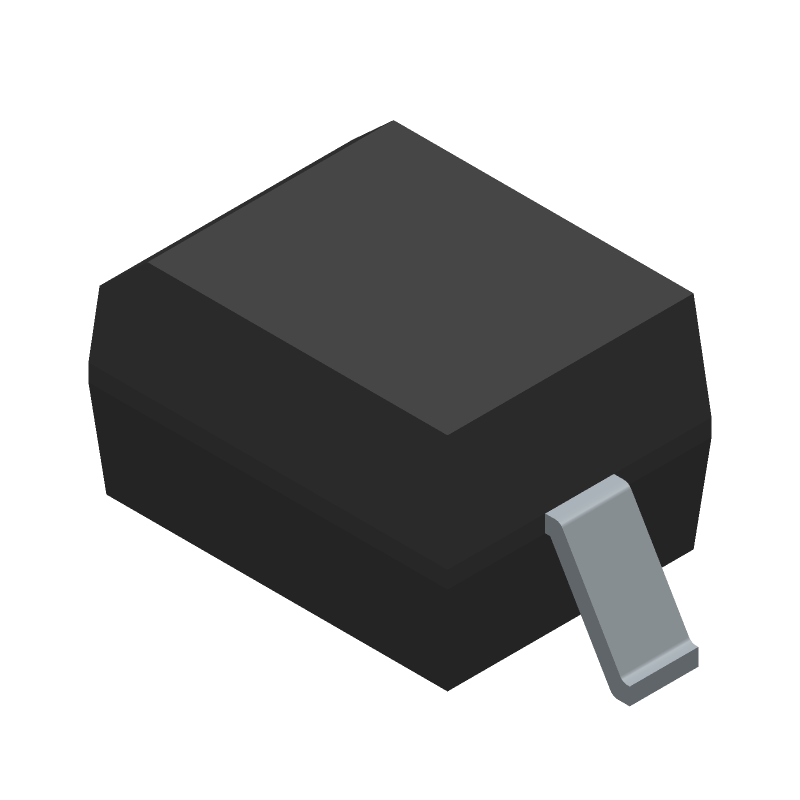

Product Images
