Single Zener Diode with a 4.7V working voltage and 6% voltage tolerance. Features 300mW maximum power dissipation, 80 Ohm impedance, and a maximum reverse leakage current of 3uA. Packaged in a compact SOD-323-2 plastic case, measuring 0.07 x 0.053 x 0.039 inches. Operates across a wide temperature range from -65°C to 150°C. RoHS compliant and supplied on tape and reel.
PackageSOD-323-2
Voltage Rating4.7V
Power200mW
Quick Jump:
Technical Specifications
Onsemi MM3Z4V7T1G technical specifications.
General
| Package/Case | SOD-323-2 |
| Height | 0.039inch |
| Impedance | 80R |
| Lead Free | Lead Free |
| Length | 0.07inch |
| Material | Plastic |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 300mW |
| Max Reverse Current | 3uA |
| Max Reverse Leakage Current | 3uA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 6% |
| DC Rated Voltage | 4.7V |
| Voltage Tolerance | 6% |
| Width | 0.053inch |
| Working Voltage | 4.7V |
| Zener Current | 10mA |
| Zener Voltage | 4.7V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MM3Z4V7T1G Datasheet
Download the complete datasheet for Onsemi MM3Z4V7T1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

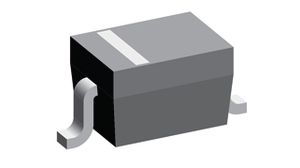

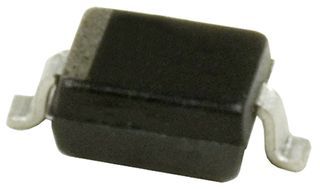

Product Images
