6.8V Zener Diode, 2% voltage tolerance, 300mW max power dissipation. Features 15 Ohm impedance and 2uA max reverse leakage current. Packaged in a compact SOD-323-2 plastic case, measuring 1.7mm x 1.25mm x 0.9mm. Operates from -65°C to 150°C, supplied on a 3000-piece tape and reel. RoHS compliant and lead-free.
PackageSOD-323-2
Voltage Rating6.8V
Power200mW
Quick Jump:
Technical Specifications
Onsemi MM3Z6V8ST1G technical specifications.
General
| Package/Case | SOD-323-2 |
| Height | 0.9mm |
| Impedance | 15R |
| Lead Free | Lead Free |
| Length | 1.7mm |
| Material | Plastic |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 300mW |
| Max Reverse Current | 2uA |
| Max Reverse Leakage Current | 2uA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 2% |
| DC Rated Voltage | 6.8V |
| Voltage Tolerance | 2% |
| Width | 1.25mm |
| Working Voltage | 6.8V |
| Zener Current | 10mA |
| Zener Voltage | 6.8V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MM3Z6V8ST1G Datasheet
Download the complete datasheet for Onsemi MM3Z6V8ST1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

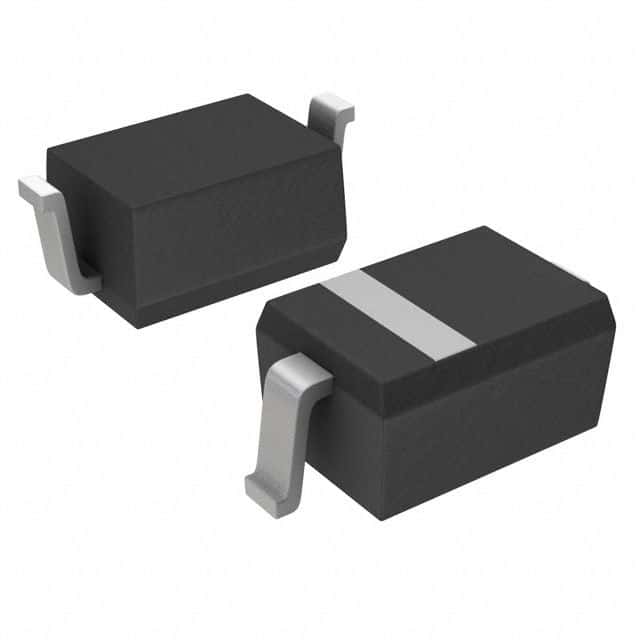

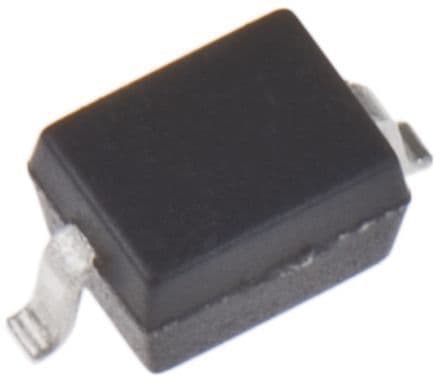

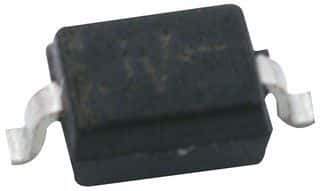

Product Images
