The MM5Z27VT1G is a single zener diode with a DC rated voltage of 27V and a tolerance of 7%. It has a maximum power dissipation of 500mW and a maximum reverse leakage current of 50nA. The diode is packaged in a 2-pin SOD-523 case and is lead free. It operates over a temperature range of -65°C to 150°C and is RoHS compliant.
PackageSOD-523-2
Power200mW
Quick Jump:
Technical Specifications
Onsemi MM5Z27VT1G technical specifications.
General
| Package/Case | SOD-523-2 |
| Height | 0.7mm |
| Impedance | 80R |
| Lead Free | Lead Free |
| Length | 1.3mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 500mW |
| Max Reverse Leakage Current | 50nA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Tolerance | 7% |
| DC Rated Voltage | 27V |
| Voltage Tolerance | 7% |
| Width | 0.9mm |
| Zener Current | 10mA |
| Zener Voltage | 27V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MM5Z27VT1G Datasheet
Download the complete datasheet for Onsemi MM5Z27VT1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

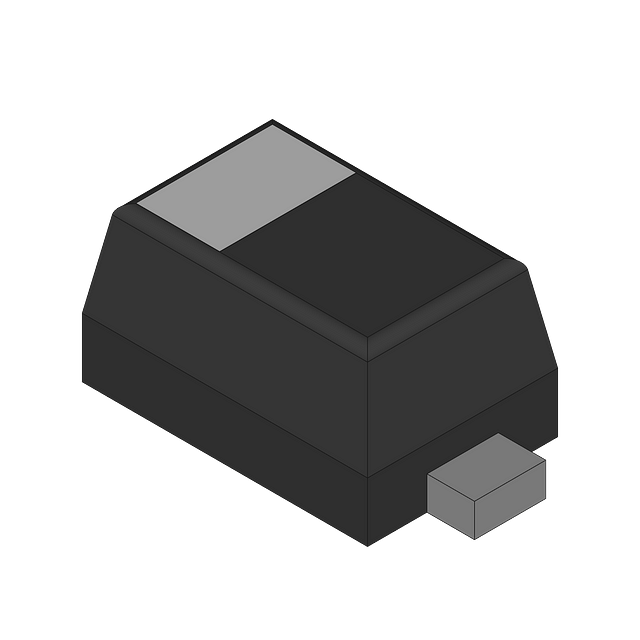

Product Images
