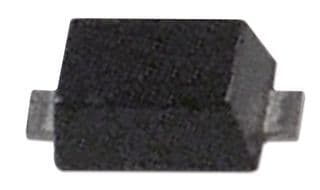

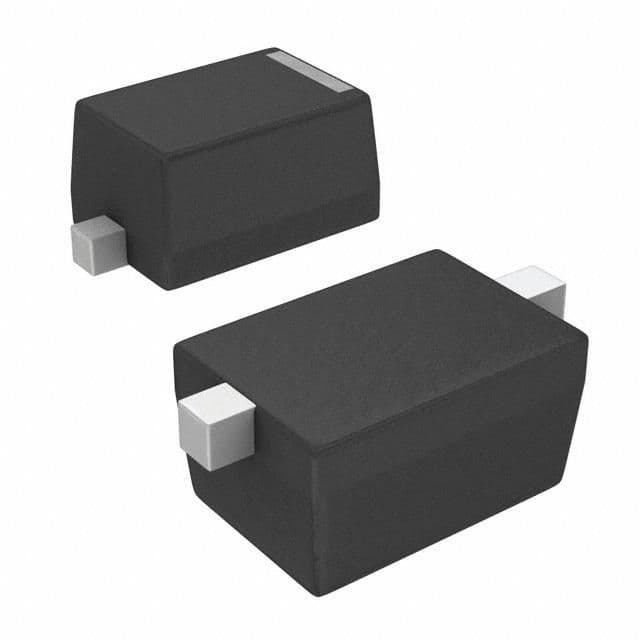

The MM5Z3V6 is a surface mount zener diode with a working voltage of 3.6V and a tolerance of 6%. It has a maximum power dissipation of 200mW and a maximum operating temperature range of -55°C to 150°C. The diode is packaged in a R-PDSO-F2 package and is RoHS compliant. It has a lead-free construction and is available in quantities of 8000 per reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi MM5Z3V6 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi MM5Z3V6 technical specifications.
| Height | 0.7mm |
| Impedance | 90R |
| Lead Free | Lead Free |
| Length | 1.3mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Max Reverse Current | 5uA |
| Max Reverse Leakage Current | 5uA |
| Mount | Surface Mount |
| Package Quantity | 8000 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 6% |
| Voltage Tolerance | 6% |
| Weight | 0.01g |
| Width | 0.9mm |
| Working Voltage | 3.6V |
| Zener Voltage | 3.6V |
| RoHS | Compliant |
