Technical Specifications
Onsemi MM5Z5V1 technical specifications.
General
| Height | 0.7mm |
| Impedance | 60R |
| Lead Free | Lead Free |
| Length | 1.3mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Max Reverse Current | 2uA |
| Max Reverse Leakage Current | 2uA |
| Mount | Surface Mount |
| Package Quantity | 8000 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 6% |
| Voltage Tolerance | 6% |
| Weight | 0.01g |
| Width | 0.9mm |
| Working Voltage | 5.1V |
| Zener Voltage | 5.1V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MM5Z5V1 Datasheet
Download the complete datasheet for Onsemi MM5Z5V1 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

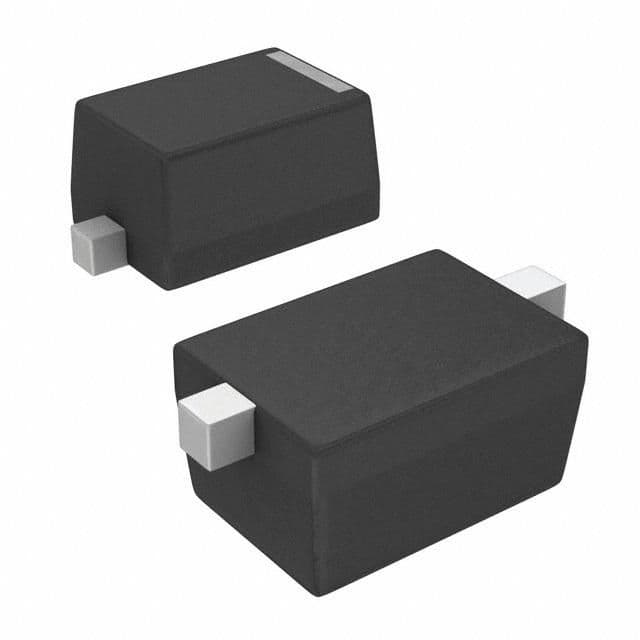

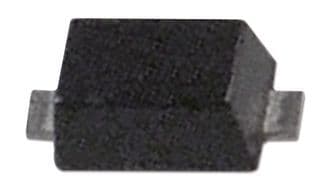

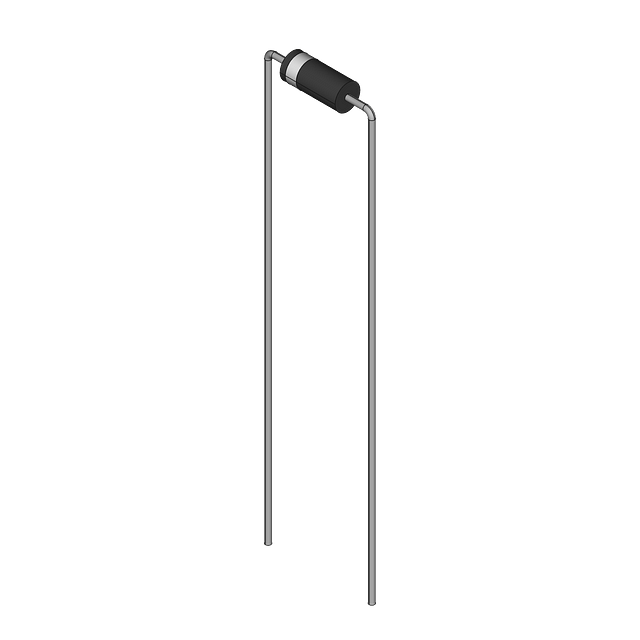

Product Images
