The MM5Z5V6 is a surface mount zener diode with a working voltage of 5.6V and a tolerance of 7%. It has a maximum power dissipation of 200mW and can operate within a temperature range of -55°C to 150°C. The diode is packaged in a R-PDSO-F2 package and is compliant with RoHS regulations.
Voltage Rating5.6V
MountingSurface Mount
Power200mW
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Onsemi MM5Z5V6 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Onsemi MM5Z5V6 technical specifications.
General
| Height | 0.7mm |
| Impedance | 40R |
| Lead Free | Lead Free |
| Length | 1.3mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Max Reverse Current | 1uA |
| Max Reverse Leakage Current | 1uA |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 7% |
| Voltage Tolerance | 7% |
| Weight | 0.01g |
| Width | 0.9mm |
| Working Voltage | 5.6V |
| Zener Voltage | 5.6V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MM5Z5V6 Datasheet
Download the complete datasheet for Onsemi MM5Z5V6 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

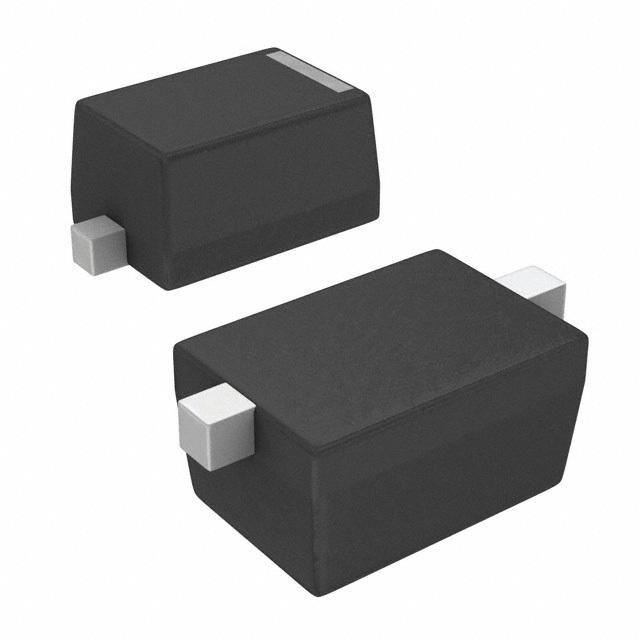

Product Images
