Standard tolerance Zener diode voltage regulator, 5.6V DC rated voltage, with 500mW maximum power dissipation. Features a 5.6V Zener voltage and 10mA Zener current. Packaged in a compact SOD-523-2 surface-mount case with dimensions of 1.3mm length, 0.9mm width, and 0.7mm height. Operates within a temperature range of -65°C to 150°C and is RoHS compliant.
PackageSOD-523-2
Voltage Rating5.6V
Power200mW
Quick Jump:
Technical Specifications
Onsemi MM5Z5V6T1G technical specifications.
General
| Package/Case | SOD-523-2 |
| Height | 0.7mm |
| Impedance | 40R |
| Lead Free | Lead Free |
| Length | 1.3mm |
| Material | Plastic |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 500mW |
| Max Reverse Current | 1uA |
| Max Reverse Leakage Current | 1uA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Tolerance | 7.1% |
| DC Rated Voltage | 5.6V |
| Voltage Tolerance | 7% |
| Width | 0.9mm |
| Working Voltage | 5.6V |
| Zener Current | 10mA |
| Zener Voltage | 5.6V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MM5Z5V6T1G Datasheet
Download the complete datasheet for Onsemi MM5Z5V6T1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

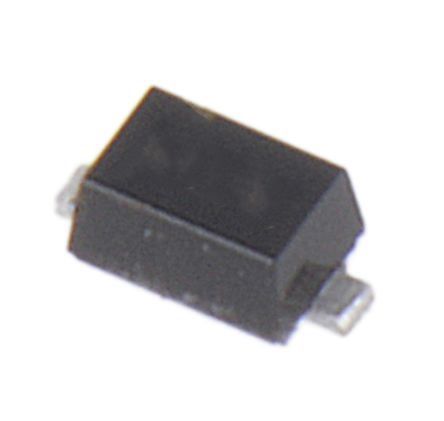

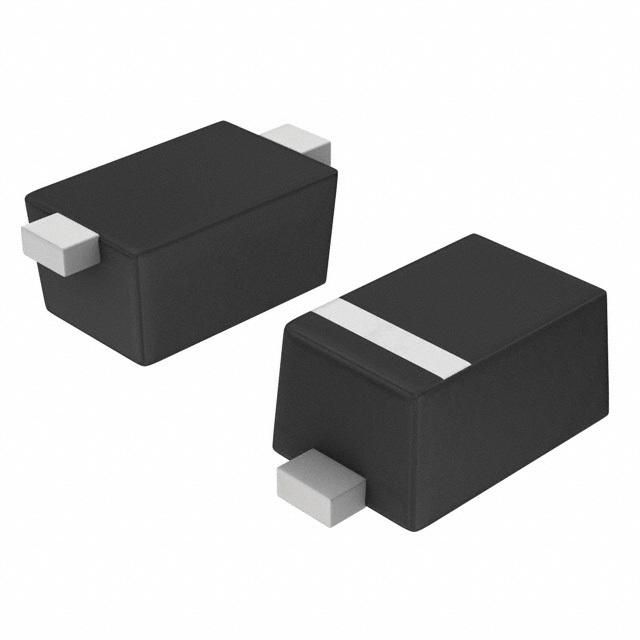

Product Images
