Technical Specifications
Onsemi MM5Z6V8T1G technical specifications.
General
| Package/Case | SOD-523-2 |
| Height | 0.7mm |
| Impedance | 15R |
| Lead Free | Lead Free |
| Length | 1.3mm |
| Material | Plastic |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 200mW |
| Max Reverse Leakage Current | 2uA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Tolerance | 5.9% |
| DC Rated Voltage | 6.8V |
| Voltage Tolerance | 6% |
| Width | 0.9mm |
| Zener Current | 10mA |
| Zener Voltage | 6.8V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MM5Z6V8T1G Datasheet
Download the complete datasheet for Onsemi MM5Z6V8T1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

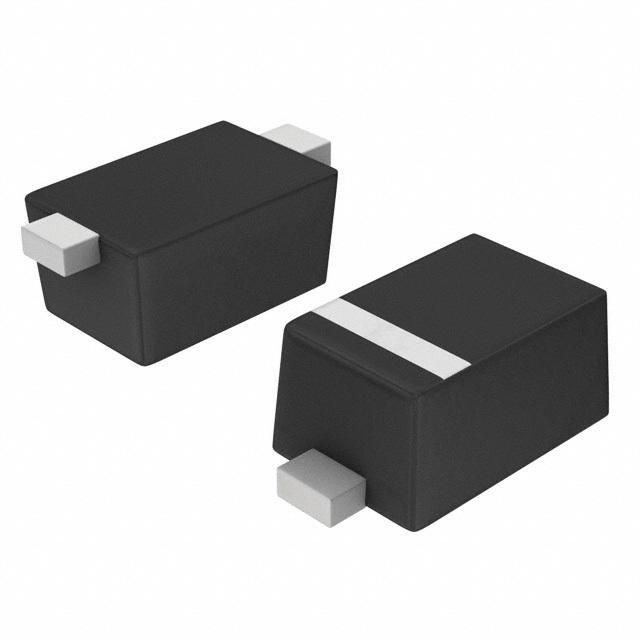

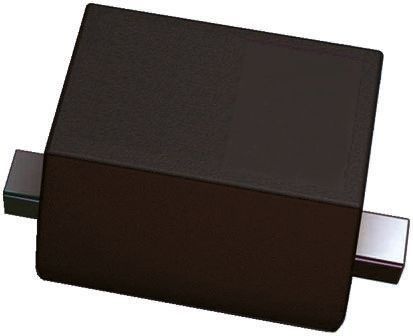

Product Images
