The Onsemi MM5Z75V is a surface mount zener diode with a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. It has a maximum power dissipation of 200mW and a maximum reverse leakage current of 50nA. The diode is packaged in an R-PDSO-F2 package and is RoHS compliant. It is not radiation hardened.
MountingSurface Mount
Power200mW
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Onsemi MM5Z75V datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Onsemi MM5Z75V technical specifications.
General
| Impedance | 255R |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Max Reverse Leakage Current | 50nA |
| Mount | Surface Mount |
| Package Quantity | 8000 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Tolerance | 6% |
| Voltage Tolerance | 6% |
| Weight | 0.01g |
| Zener Voltage | 75V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MM5Z75V Datasheet
Download the complete datasheet for Onsemi MM5Z75V to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

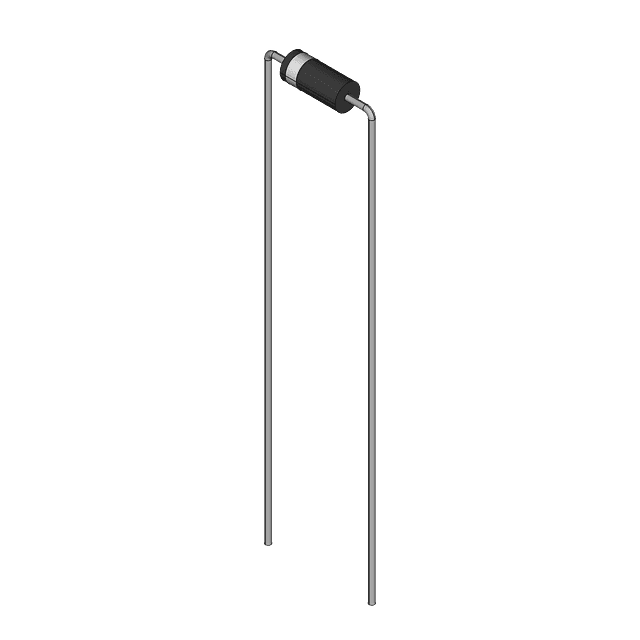

Product Images
