Octal 3-STATE Transceiver, CMOS technology, featuring 8 bidirectional channels. This integrated circuit operates with a minimum supply voltage of 2V and a maximum of 6V, offering 8-bit logic functionality. It supports a high-level output current of 7.8mA and a low-level output current of 7.8mA, with a general output current of 6mA. Packaged in a TSSOP for surface mounting, it operates within a temperature range of -40°C to 85°C.
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi MM74HC245AMTC technical specifications.
General
| Package/Case | TSSOP |
| Direction | Bidirectional |
| Height | 0.9mm |
| High Level Output Current | 7.8mA |
| Length | 6.5mm |
| Logic Function | Transceiver, Inverting |
| Low Level Output Current | 7.8mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 500mW |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits per Element | 8 |
| Number of Channels | 8 |
| Number of Circuits | 8 |
| Number of Elements | 1 |
| Number of Inputs | 8 |
| Output Current | 6mA |
| Output Type | 3-STATE |
| Package Quantity | 73 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 96ns |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74HC |
| Technology | CMOS |
| Termination | SMD/SMT |
| Turn-On Delay Time | 17ns |
| Weight | 0.191g |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MM74HC245AMTC Datasheet
Download the complete datasheet for Onsemi MM74HC245AMTC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

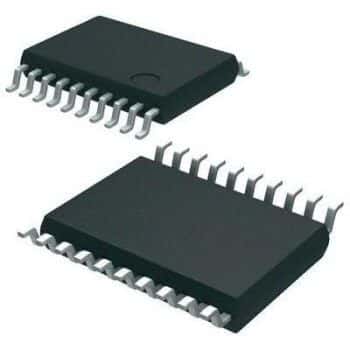

Product Images
