Octal D-Type Flip-Flop, CMOS technology, featuring 8 bits with positive edge clock triggering. Operates with a 2V to 6V supply voltage, offering a maximum frequency of 78MHz and a propagation delay of 23ns. This through-hole component provides 5.2mA of output current at both high and low levels. Packaged in a 20-pin PDIP, it functions across a -40°C to 85°C temperature range.
Frequency78MHz
PackagePDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi MM74HC273N technical specifications.
General
Package/Case
PDIP
Clock Edge Trigger Type
Positive Edge
Frequency
78MHz
High Level Output Current
-5.2mA
Input Capacitance
7pF
Input Type
SINGLE-ENDED
Lead Free
Lead Free
Logic Function
D-Type, Flip-Flop
Low Level Output Current
5.2mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Through Hole
Number of Bits
8
Number of Bits per Element
8
Number of Circuits
8
Number of Elements
1
Number of Gates
8
Number of Input Lines
8
Number of Inputs
1
Number of Output Lines
8
Output Current
5.2mA
Package Quantity
18
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
23ns
Quiescent Current
8uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
No
Series
74HC
Technology
CMOS
Termination
Through Hole
Turn-On Delay Time
18ns
Weight
2.26g
Compliance
RoHS
Not CompliantNo
Datasheet
Onsemi MM74HC273N Datasheet
Download the complete datasheet for Onsemi MM74HC273N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

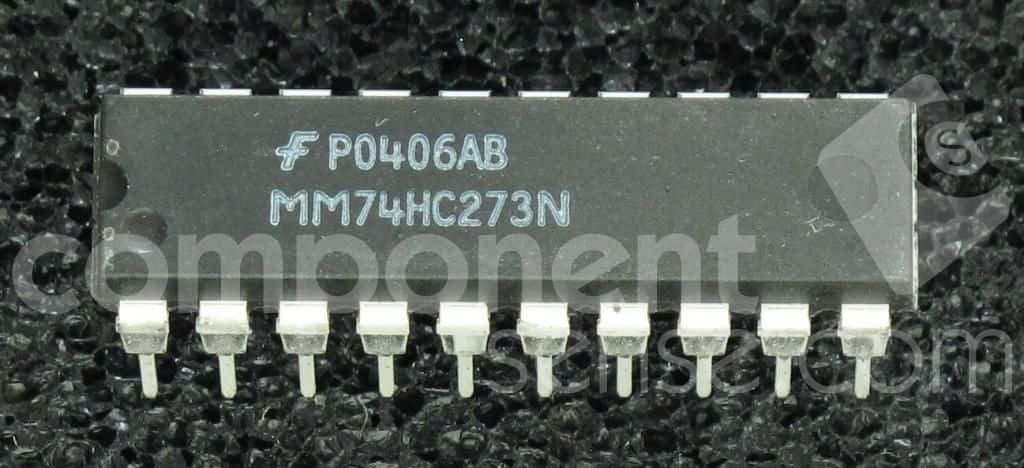

Product Images
