Dual Monostable Multivibrator IC, CMOS technology, operating from 2V to 6V supply voltage with a nominal 5V. Features Schmitt trigger inputs for improved noise immunity and a propagation delay of 26ns. Each of the two independent circuits offers a low-level output current of 5.2mA and a high-level output current of -5.2mA. Packaged in a 16-pin DIP for through-hole mounting, this RoHS compliant component operates across a temperature range of -40°C to 85°C.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi MM74HC4538N technical specifications.
General
| Package/Case | DIP |
| High Level Output Current | -5.2mA |
| Independent Circuits | 2 |
| Lead Free | Lead Free |
| Logic Function | Multivibrator |
| Low Level Output Current | 5.2mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Functions | 2 |
| Number of Gates | 2 |
| Number of Inputs | 2 |
| Operating Supply Voltage | 5V |
| Output Current | 5.2mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Propagation Delay | 26ns |
| Quiescent Current | 130mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Schmitt Trigger Input | Yes |
| Series | 74HC |
| Supply Voltage-Nom | 6V |
| Technology | CMOS |
| Termination | Through Hole |
| Turn-On Delay Time | 410ns |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MM74HC4538N Datasheet
Download the complete datasheet for Onsemi MM74HC4538N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

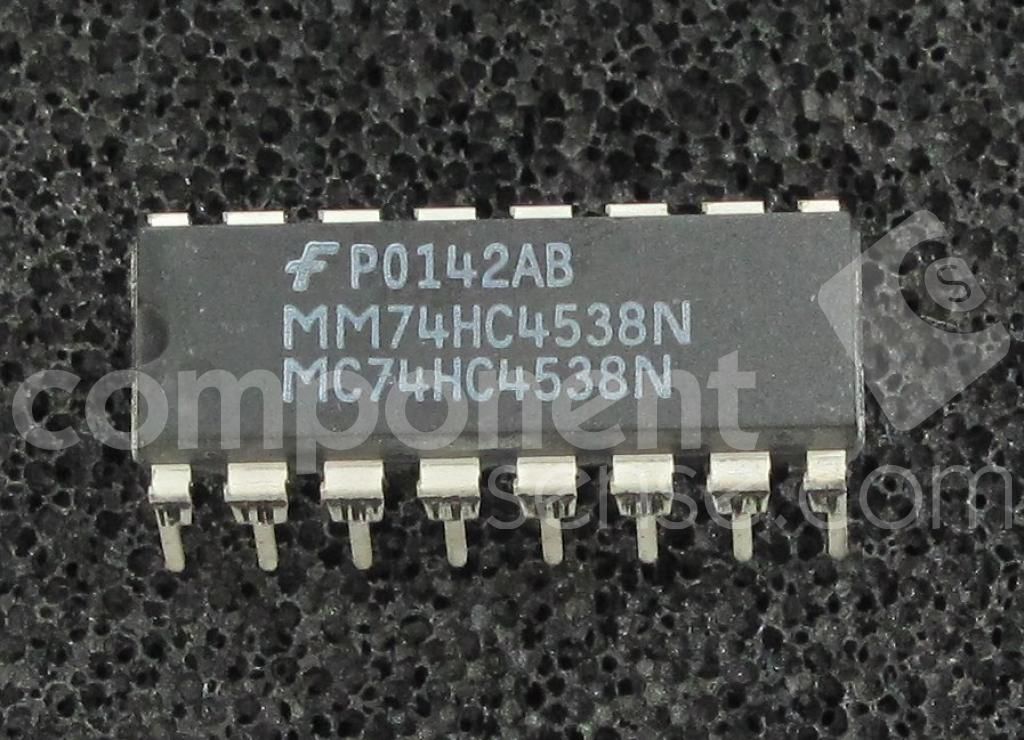

Product Images
