PackageSOT-323-3
Capacitance2.5pF
Current Rating100mA
Power200mW
Quick Jump:
Technical Specifications
Onsemi MMBD717LT1G technical specifications.
General
| Capacitance | 2.5pF |
| Package/Case | SOT-323-3 |
| Current Rating | 100mA |
| Element Configuration | Common Anode |
| Forward Current | 1mA |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 20V |
| Max Reverse Current | 1uA |
| Max Reverse Leakage Current | 1uA |
| Max Reverse Voltage (DC) | 20V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 20V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MMBD717LT1G Datasheet
Download the complete datasheet for Onsemi MMBD717LT1G to view detailed technical specifications.
No datasheet is available for this part.

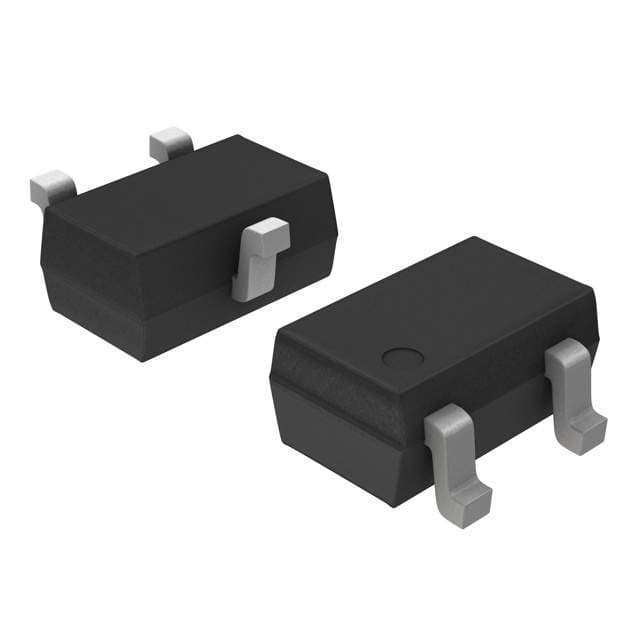

Product Images
