Technical Specifications
Onsemi MMDL770T1G technical specifications.
General
| Package/Case | SOD-323-2 |
| Current Rating | 100mA |
| Element Configuration | Single |
| Forward Current | 10mA |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 1.8mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 70V |
| Max Reverse Current | 200nA |
| Max Reverse Leakage Current | 200nA |
| Max Reverse Voltage (DC) | 70V |
| Output Current | 100mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 70V |
| Width | 1.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MMDL770T1G Datasheet
Download the complete datasheet for Onsemi MMDL770T1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

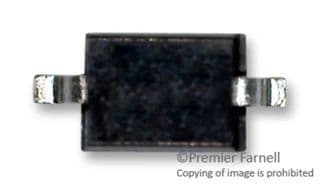

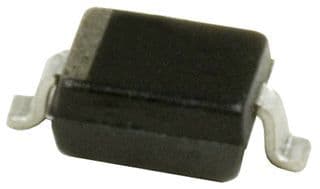

Product Images
