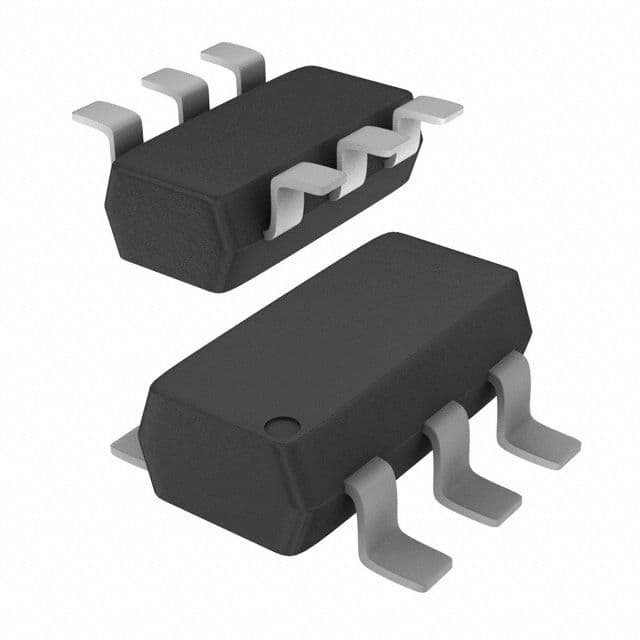

Unidirectional Transient Voltage Suppressor (TVS) diode with 150W peak pulse power and 2.45A peak pulse current. Features a 6.8V DC rated voltage, 9.8V clamping voltage, and 6.46V minimum breakdown voltage. This 4-element silicon TVS diode offers 250pF capacitance and 500nA leakage current. Operates within a -55°C to 150°C temperature range and is packaged in an SC-74, 6-pin SMD/SMT termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi MMQA6V8T1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi MMQA6V8T1 technical specifications.
| Capacitance | 250pF |
| Package/Case | SC |
| Clamping Voltage | 9.8V |
| Depth | 1.5mm |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Lead Free | Contains Lead |
| Leakage Current | 500nA |
| Length | 3mm |
| Min Breakdown Voltage | 6.46V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Surge Current | 2.45A |
| Number of Channels | 4 |
| Number of Lines | 4 |
| Number of Unidirectional Channels | 4 |
| Operating Supply Voltage | 4.3V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 2.45A |
| Peak Pulse Power | 150W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 6.8V |
| RoHS Compliant | No |
| Series | MMQA |
| Termination | SMD/SMT |
| DC Rated Voltage | 6.8V |
| Width | 1.5mm |
| Working Voltage | 4.3V |
| RoHS | Not CompliantNo |
