Surface mount switching diode with a 100V repetitive reverse voltage and 200mA forward current. Features a 4ns reverse recovery time, 4pF capacitance, and 2A maximum surge current. Operates across a -55°C to 150°C temperature range with 400mW power dissipation. Supplied on a 3000-piece tape and reel.
Capacitance4pF
Current Rating200mA
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Onsemi MMSD4148 technical specifications.
General
| Average Rectified Current | 200mA |
| Capacitance | 4pF |
| Current Rating | 200mA |
| Element Configuration | Single |
| Forward Current | 200mA |
| Lead Free | Lead Free |
| Max Forward Surge Current (Ifsm) | 2A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Max Reverse Current | 5uA |
| Max Reverse Voltage (DC) | 100V |
| Max Surge Current | 2A |
| Mount | Surface Mount |
| Output Current | 200mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 2A |
| Polarity | Standard |
| Power Dissipation | 400mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 4ns |
| Reverse Recovery Time-Max | 4ns |
| Reverse Voltage | 100V |
| RoHS Compliant | Yes |
| DC Rated Voltage | 100V |
| Weight | 0.03g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MMSD4148 Datasheet
Download the complete datasheet for Onsemi MMSD4148 to view detailed technical specifications.
No datasheet is available for this part.

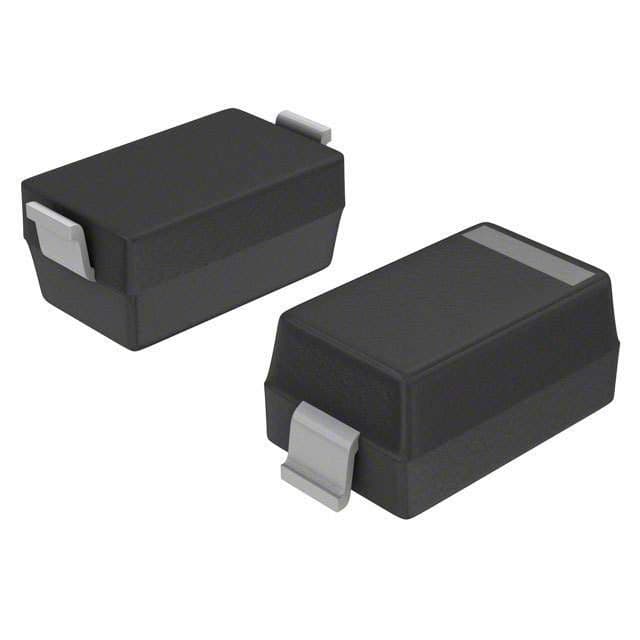

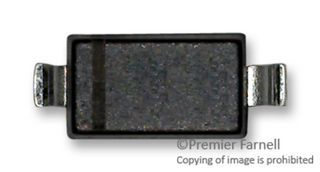

Product Images
