High-speed switching diode with a maximum repetitive reverse voltage of 100V and a forward current rating of 200mA. Features a low capacitance of 4pF and a fast reverse recovery time of 4ns. Packaged in a compact SOD-123-2 case, this single-element diode offers a maximum operating temperature of 150°C and is supplied on a 3000-piece tape and reel. It is RoHS compliant and halogen-free.
PackageSOD-123-2
Capacitance4pF
Current Rating200mA
PolarityStandard
Quick Jump:
Technical Specifications
Onsemi MMSD914T1G technical specifications.
General
| Average Rectified Current | 200mA |
| Capacitance | 4pF |
| Package/Case | SOD-123-2 |
| Current Rating | 200mA |
| Element Configuration | Single |
| Forward Current | 200mA |
| Halogen Free | Halogen Free |
| Height | 1.12mm |
| Lead Free | Lead Free |
| Length | 2.69mm |
| Max Forward Surge Current (Ifsm) | 500mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Max Reverse Current | 5uA |
| Max Reverse Leakage Current | 5uA |
| Max Reverse Voltage (DC) | 100V |
| Max Surge Current | 2A |
| Output Current | 200mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 2A |
| Polarity | Standard |
| Power Dissipation | 425mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 4ns |
| Reverse Recovery Time-Max | 4ns |
| RoHS Compliant | Yes |
| DC Rated Voltage | 100V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MMSD914T1G Datasheet
Download the complete datasheet for Onsemi MMSD914T1G to view detailed technical specifications.
No datasheet is available for this part.

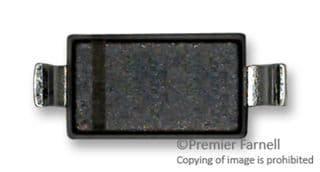

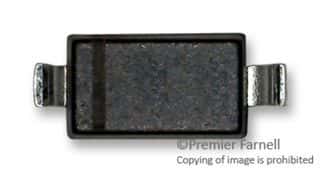

Product Images
