500 mW Zener Diode Voltage Regulator with a 15V working voltage and 5% tolerance. This discrete semiconductor features a 15V Zener voltage and 30 Ohms impedance. Packaged in a compact SOD-123-2 case with dimensions of 2.69mm length, 1.6mm width, and 1.12mm height, it operates from -55°C to 150°C. The diode offers a maximum reverse leakage current of 50nA and is RoHS compliant.
PackageSOD-123-2
Voltage Rating15V
Power500mW
Quick Jump:
Technical Specifications
Onsemi MMSZ15T1G technical specifications.
General
| Package/Case | SOD-123-2 |
| Height | 1.12mm |
| Impedance | 30R |
| Lead Free | Lead Free |
| Length | 2.69mm |
| Material | Plastic |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Max Reverse Current | 50nA |
| Max Reverse Leakage Current | 50nA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| DC Rated Voltage | 15V |
| Voltage Tolerance | 5% |
| Width | 1.6mm |
| Working Voltage | 15V |
| Zener Current | 10mA |
| Zener Voltage | 15V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MMSZ15T1G Datasheet
Download the complete datasheet for Onsemi MMSZ15T1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

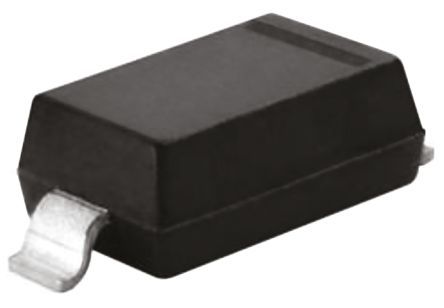

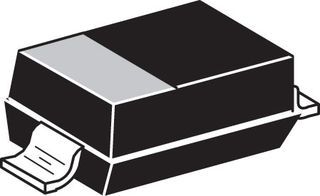

Product Images
