500mW, 5% tolerance Zener diode voltage regulator with a 3V working voltage. Features a 95 Ohm impedance and a maximum reverse leakage current of 10µA. Packaged in a compact SOD-123-2 surface-mount case, measuring 2.84mm in length, 1.8mm in width, and 1.25mm in height. Operates across a temperature range of -55°C to 150°C and is supplied on a 3000-piece tape and reel.
PackageSOD-123-2
Voltage Rating3V
Power500mW
Quick Jump:
Technical Specifications
Onsemi MMSZ3V0T1G technical specifications.
General
| Package/Case | SOD-123-2 |
| Diode Type | ZENER |
| Height | 1.25mm |
| Impedance | 95R |
| Lead Free | Lead Free |
| Length | 2.84mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Max Reverse Current | 10uA |
| Max Reverse Leakage Current | 10uA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| DC Rated Voltage | 3V |
| Voltage Tolerance | 5% |
| Width | 1.8mm |
| Working Voltage | 3V |
| Zener Current | 10mA |
| Zener Voltage | 3V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MMSZ3V0T1G Datasheet
Download the complete datasheet for Onsemi MMSZ3V0T1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

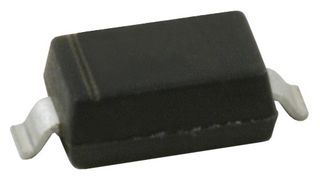

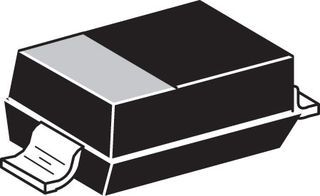

Product Images
