Technical Specifications
Onsemi MMSZ4716T1G technical specifications.
General
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Max Reverse Leakage Current | 10nA |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| DC Rated Voltage | 39V |
| Voltage Tolerance | 5% |
| Zener Current | 50uA |
| Zener Voltage | 39V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MMSZ4716T1G Datasheet
Download the complete datasheet for Onsemi MMSZ4716T1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

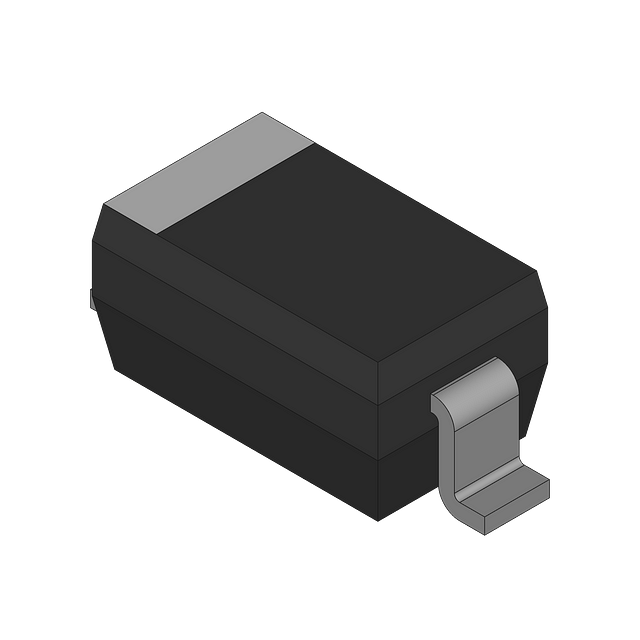

Product Images
