PackageSOD-123-2
Power500mW
Quick Jump:
Technical Specifications
Onsemi MMSZ4V7T3G technical specifications.
General
| Package/Case | SOD-123-2 |
| Impedance | 80R |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Max Reverse Leakage Current | 3uA |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| DC Rated Voltage | 4.7V |
| Voltage Tolerance | 5% |
| Zener Current | 50uA |
| Zener Voltage | 4.7V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MMSZ4V7T3G Datasheet
Download the complete datasheet for Onsemi MMSZ4V7T3G to view detailed technical specifications.
No datasheet is available for this part.

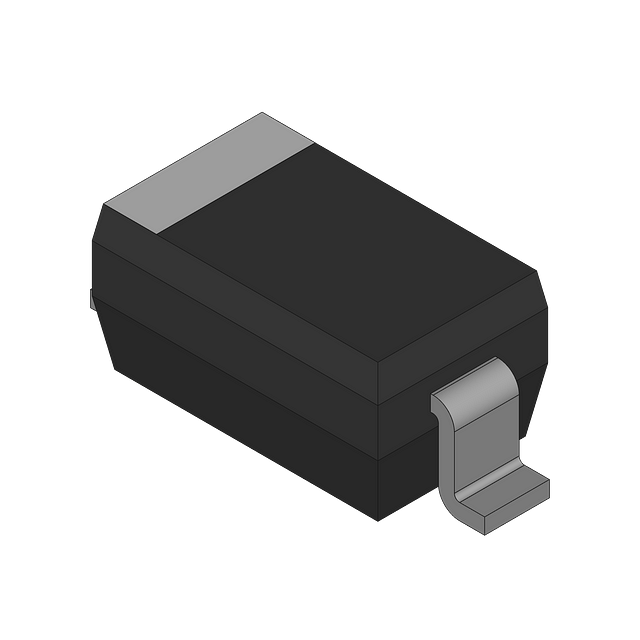

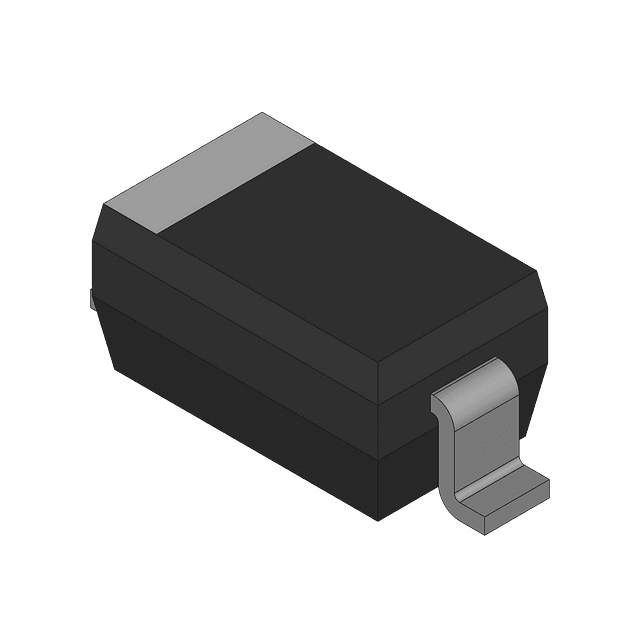

Product Images
