3V Zener Diode, 500mW power dissipation, featuring a 5% voltage tolerance. This surface-mount component is housed in a compact SOD-123-2 package with dimensions of 2.69mm length, 1.6mm width, and 1.12mm height. Operating across a temperature range of -55°C to 150°C, it offers a Zener current of 10mA and a maximum reverse leakage current of 50uA. Packaged on a 3000-piece tape and reel, this RoHS compliant diode is designed for SMT termination.
PackageSOD-123-2
Voltage Rating3V
Power500mW
Quick Jump:
Technical Specifications
Onsemi MMSZ5225BT1G technical specifications.
General
| Package/Case | SOD-123-2 |
| Height | 1.12mm |
| Impedance | 29R |
| Lead Free | Lead Free |
| Length | 2.69mm |
| Material | Plastic |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Max Reverse Current | 50uA |
| Max Reverse Leakage Current | 50uA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Tolerance | 5% |
| DC Rated Voltage | 3V |
| Voltage Tolerance | 5% |
| Width | 1.6mm |
| Working Voltage | 3V |
| Zener Current | 10mA |
| Zener Voltage | 3V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MMSZ5225BT1G Datasheet
Download the complete datasheet for Onsemi MMSZ5225BT1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

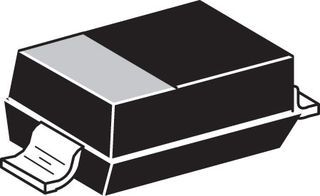

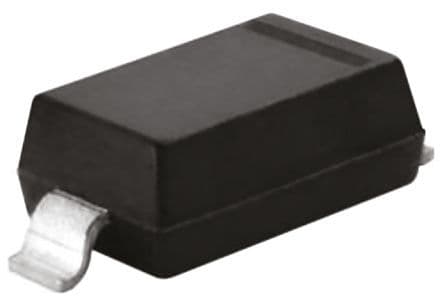

Product Images
