Technical Specifications
Onsemi MMSZ5236BT1 technical specifications.
General
| Package/Case | SOD-123-2 |
| Impedance | 6R |
| Lead Free | Contains Lead |
| Material | Plastic |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Max Reverse Leakage Current | 3uA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| RoHS Compliant | No |
| Tolerance | 5% |
| DC Rated Voltage | 7.5V |
| Voltage Tolerance | 5% |
| Zener Current | 10mA |
| Zener Voltage | 7.5V |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi MMSZ5236BT1 Datasheet
Download the complete datasheet for Onsemi MMSZ5236BT1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

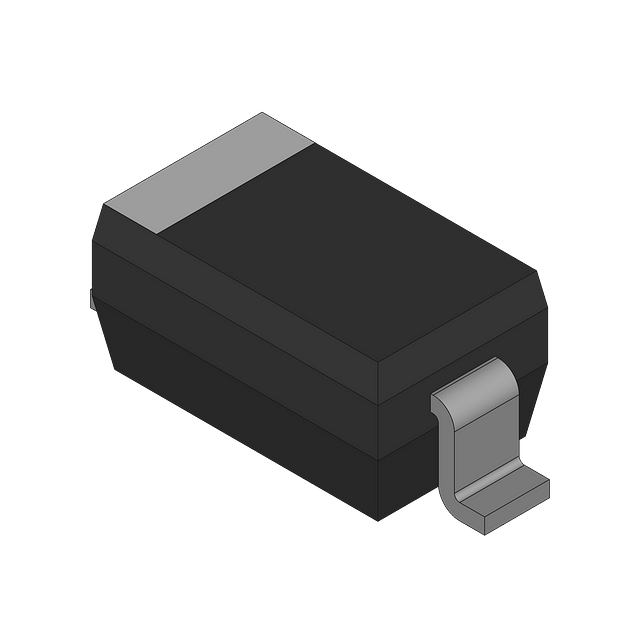

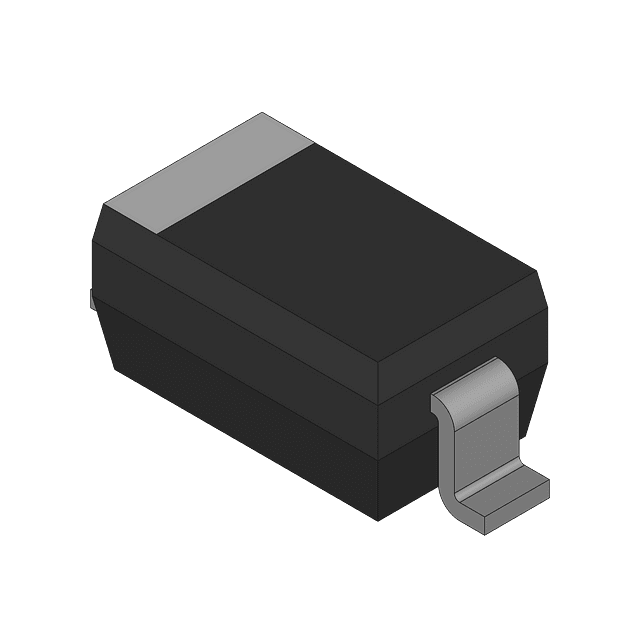

Product Images
