This Zener Diode offers a 16V working voltage with a 5% tolerance, featuring a 500mW power dissipation. Designed for surface mounting, it utilizes a compact SOD-123-2 package measuring 2.69mm in length, 1.6mm in width, and 1.12mm in height. Operating across a wide temperature range from -55°C to 150°C, this RoHS compliant component exhibits a low reverse leakage current of 100nA.
PackageSOD-123-2
Voltage Rating16V
Power500mW
Quick Jump:
Technical Specifications
Onsemi MMSZ5246BT1G technical specifications.
General
| Package/Case | SOD-123-2 |
| Height | 1.12mm |
| Impedance | 17R |
| Lead Free | Lead Free |
| Length | 2.69mm |
| Material | Plastic |
| Min Breakdown Voltage | 15.2V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Max Reverse Current | 100nA |
| Max Reverse Leakage Current | 100nA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| DC Rated Voltage | 16V |
| Voltage Tolerance | 5% |
| Width | 1.6mm |
| Working Voltage | 16V |
| Zener Current | 10mA |
| Zener Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MMSZ5246BT1G Datasheet
Download the complete datasheet for Onsemi MMSZ5246BT1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

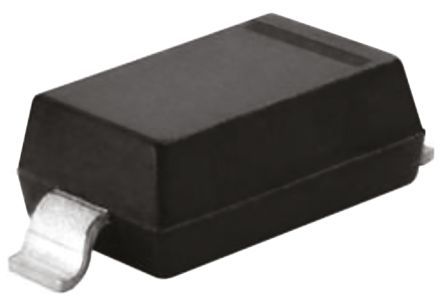

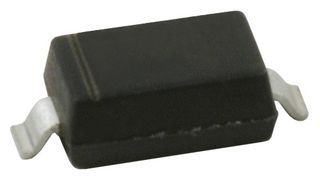

Product Images
