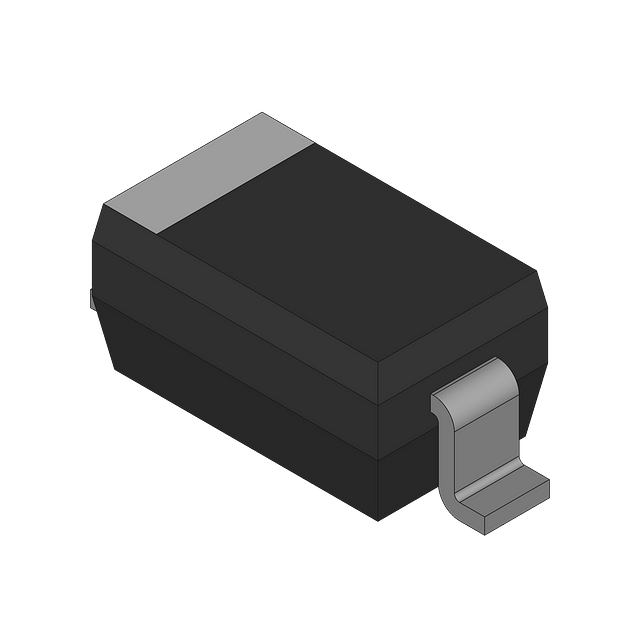

The MMSZ5252ET1G is a 24V 5% Zener diode with a maximum power dissipation of 500mW and a maximum reverse leakage current of 100nA. It is packaged in a SOD-123-2 package with dimensions 1.8x2.84mm. The diode operates over a temperature range of -55°C to 150°C and is RoHS compliant. It is available in a tape and reel packaging format.
Checking distributor stock and pricing after the page loads.
Onsemi MMSZ5252ET1G technical specifications.
| Package/Case | SOD-123-2 |
| Height | 1.25mm |
| Impedance | 33R |
| Lead Free | Lead Free |
| Length | 2.84mm |
| Material | Plastic |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Max Reverse Leakage Current | 100nA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| DC Rated Voltage | 24V |
| Voltage Tolerance | 5% |
| Width | 1.8mm |
| Zener Current | 10mA |
| Zener Voltage | 24V |
| RoHS | Compliant |
No datasheet is available for this part.
