500mW Zener Diode in SOD-123 package, featuring a 27V working voltage and 5% voltage tolerance. This unidirectional diode offers a breakdown voltage range of 14.25V to 15.75V, with a maximum reverse leakage current of 100nA. Designed for surface-mount technology, it operates from -55°C to 150°C and is supplied on a 3000-piece tape and reel.
PackageSOD-123-2
Voltage Rating27V
PolarityUnidirectional
Power500mW
Quick Jump:
Technical Specifications
Onsemi MMSZ5254BT1G technical specifications.
General
| Package/Case | SOD-123-2 |
| Diode Type | ZENER |
| Height | 1.25mm |
| Impedance | 41R |
| Lead Free | Lead Free |
| Length | 2.84mm |
| Material | Plastic |
| Max Breakdown Voltage | 15.75V |
| Min Breakdown Voltage | 14.25V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Max Reverse Current | 100nA |
| Max Reverse Leakage Current | 100nA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 1.9A |
| Polarity | Unidirectional |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 12V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Tolerance | 5% |
| DC Rated Voltage | 27V |
| Voltage Tolerance | 5% |
| Width | 1.8mm |
| Working Voltage | 27V |
| Zener Current | 10mA |
| Zener Voltage | 27V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MMSZ5254BT1G Datasheet
Download the complete datasheet for Onsemi MMSZ5254BT1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

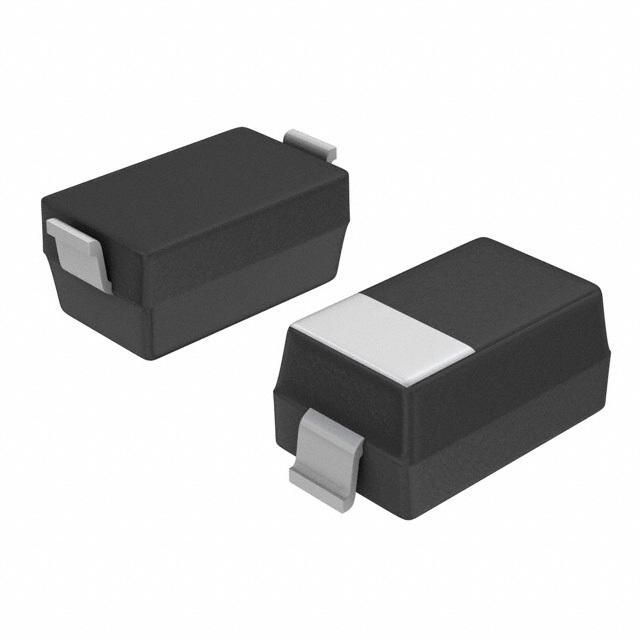

Product Images
