NPN Bipolar Digital Transistor (BRT) in SC-59 3-lead package, designed for digital applications. Features a 50V Collector Emitter Breakdown Voltage and a maximum Collector Emitter Voltage (VCEO) of 50V. Offers a continuous collector current of 100mA and a low Collector Emitter Saturation Voltage of 250mV. Operates within a temperature range of -55°C to 150°C, with a maximum power dissipation of 338mW. This RoHS and Halogen Free component is supplied on a 3000-piece tape and reel.
PackageSC
Current Rating100mA
PolarityNPN
Power338mW
Quick Jump:
Technical Specifications
Onsemi MUN2233T1G technical specifications.
General
| Package/Case | SC |
| Collector Emitter Breakdown Voltage | 50V |
| Collector Emitter Saturation Voltage | 250mV |
| Collector Emitter Voltage (VCEO) | 50V |
| Collector-emitter Voltage-Max | 250mV |
| Continuous Collector Current | 100mA |
| Current Rating | 100mA |
| Halogen Free | Halogen Free |
| Height | 1.09mm |
| hFE Min | 80 |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Breakdown Voltage | 50V |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 100mA |
| Max Power Dissipation | 230mW |
| Operating Supply Voltage | 50V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Dissipation | 338mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 50V |
| Width | 1.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MUN2233T1G Datasheet
Download the complete datasheet for Onsemi MUN2233T1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

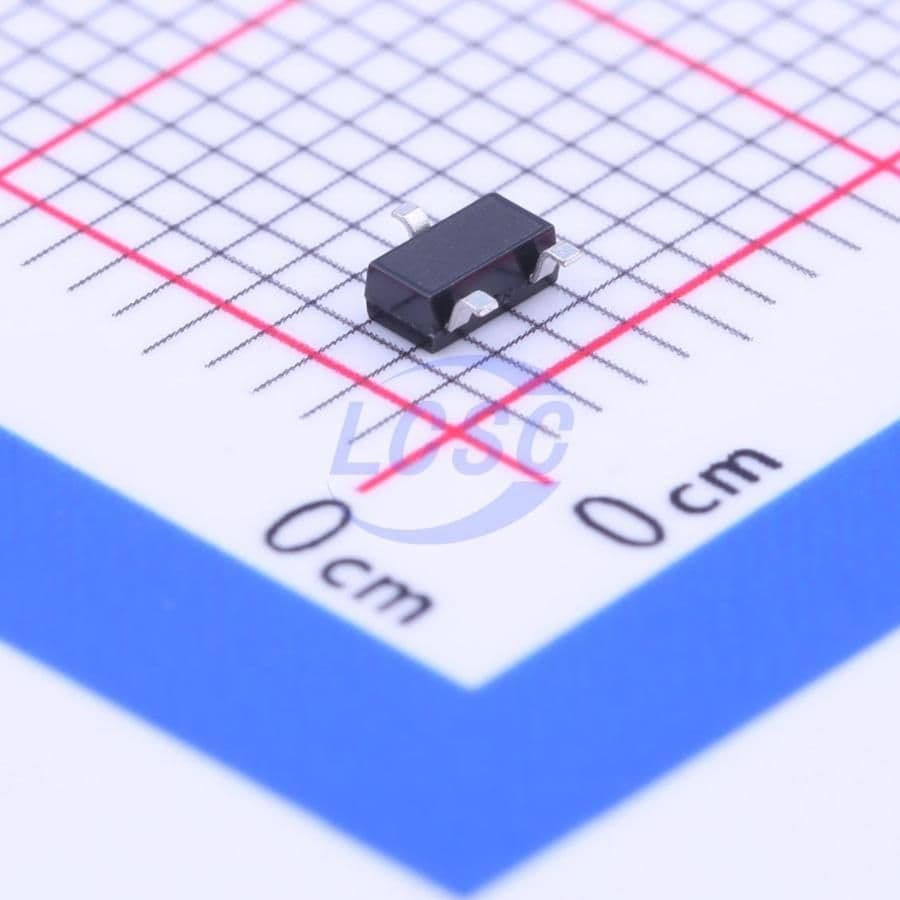

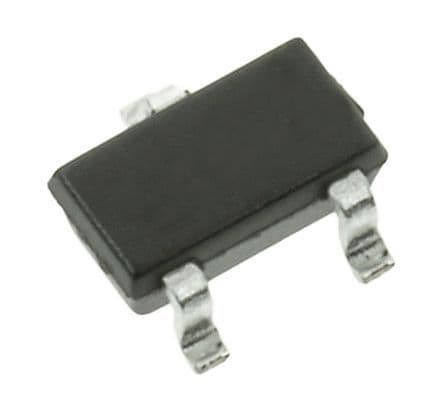

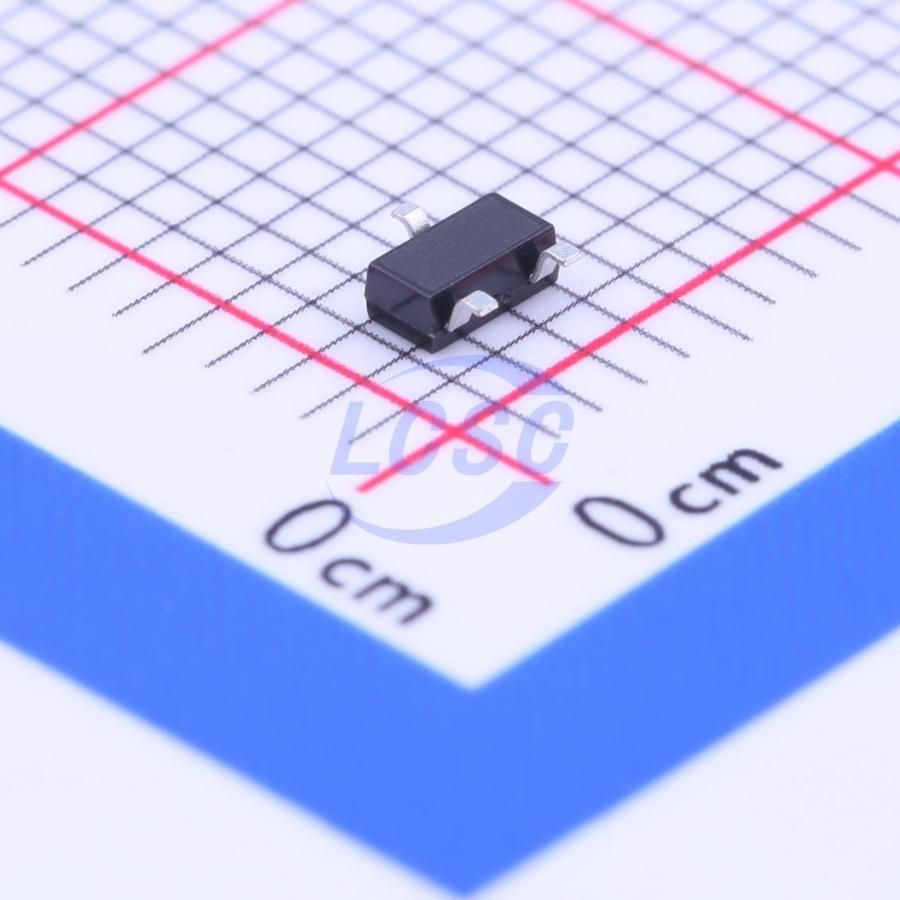

Product Images
