Ultra-fast recovery power rectifier, ideal for switch-mode applications. Features a 1A average rectified current and 150V repetitive reverse voltage. Operates across a wide temperature range from -65°C to 175°C. Packaged in a DO-41 axial lead configuration, supplied on tape and reel. RoHS and Halogen Free compliant.
PackageDO-41
Current Rating1A
PolarityStandard
Quick Jump:
Technical Specifications
Onsemi MUR115RLG technical specifications.
General
| Average Rectified Current | 1A |
| Package/Case | DO-41 |
| Current Rating | 1A |
| Forward Current | 1A |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Max Forward Surge Current (Ifsm) | 35A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 150V |
| Max Reverse Current | 2uA |
| Max Reverse Voltage (DC) | 150V |
| Max Surge Current | 35A |
| Output Current | 1A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 35A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 35ns |
| Reverse Recovery Time-Max | 35ns |
| Reverse Voltage | 150V |
| RoHS Compliant | Yes |
| Series | SWITCHMODE™ |
| DC Rated Voltage | 150V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MUR115RLG Datasheet
Download the complete datasheet for Onsemi MUR115RLG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

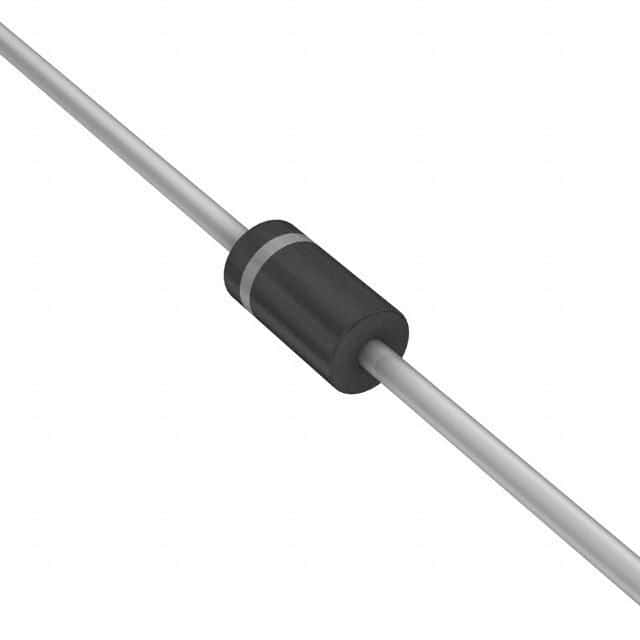

Product Images
