Ultra-fast recovery power rectifier, 4A average rectified current, 150V reverse voltage. Features 35ns reverse recovery time, 125A max surge current, and 175°C max operating temperature. Through-hole mounting with axial leads, packaged on a 1500-piece reel. RoHS and Halogen Free compliant.
PackageDO-201AD
Current Rating4A
MountingThrough Hole
PolarityStandard
Quick Jump:
Technical Specifications
Onsemi MUR415RLG technical specifications.
General
| Average Rectified Current | 4A |
| Package/Case | DO-201AD |
| Current Rating | 4A |
| Forward Current | 4A |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Max Forward Surge Current (Ifsm) | 125A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 150V |
| Max Reverse Current | 5uA |
| Max Reverse Voltage (DC) | 150V |
| Max Surge Current | 125A |
| Mount | Through Hole |
| Output Current | 4A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 125A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 35ns |
| Reverse Recovery Time-Max | 35ns |
| Reverse Voltage | 150V |
| RoHS Compliant | Yes |
| Series | SWITCHMODE™ |
| DC Rated Voltage | 150V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MUR415RLG Datasheet
Download the complete datasheet for Onsemi MUR415RLG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

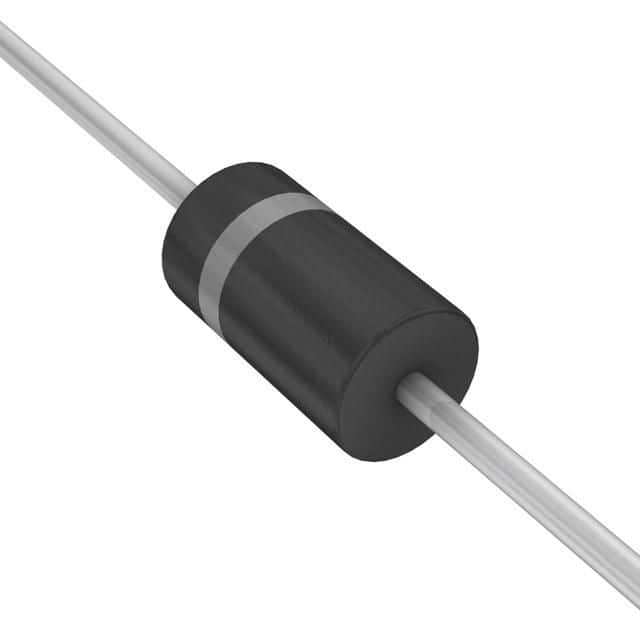

Product Images
