The MUR815 is a general purpose rectifier with a maximum operating temperature of 175°C and a minimum operating temperature of -65°C. It has a maximum reverse voltage of 150V and a maximum reverse current of 5uA. The device is packaged in a TO-220-2 package and is rated for an average rectified current of 8A. The MUR815 is not RoHS compliant and contains lead.
PackageTO-220-2
Current Rating8A
PolarityStandard
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Onsemi MUR815 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Onsemi MUR815 technical specifications.
General
| Average Rectified Current | 8A |
| Package/Case | TO-220-2 |
| Current Rating | 8A |
| Lead Free | Contains Lead |
| Max Forward Surge Current (Ifsm) | 100A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 150V |
| Max Reverse Current | 5uA |
| Max Reverse Voltage (DC) | 150V |
| Max Surge Current | 100A |
| Output Current | 8A |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Standard |
| Reverse Recovery Time | 35ns |
| Reverse Voltage | 150V |
| RoHS Compliant | No |
| Series | SWITCHMODE™ |
| DC Rated Voltage | 150V |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi MUR815 Datasheet
Download the complete datasheet for Onsemi MUR815 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

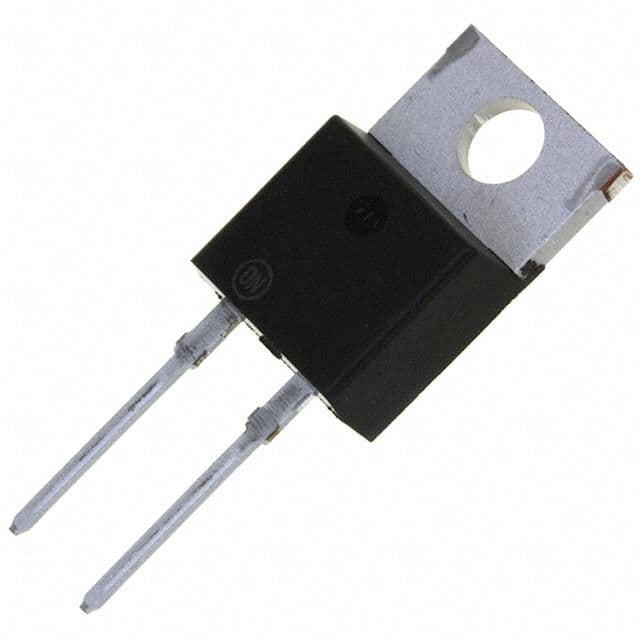

Product Images
