Ultra-fast recovery power rectifier with a 600V repetitive reverse voltage and 3A average rectified current. Features a 75ns reverse recovery time, 100A peak non-repetitive surge current, and a maximum operating temperature of 175°C. Housed in an SMC package, this RoHS and Halogen Free component is supplied on a 2500-piece tape and reel.
PackageSMC
Current Rating3A
PolarityStandard
Quick Jump:
Technical Specifications
Onsemi MURS360T3G technical specifications.
General
| Average Rectified Current | 3A |
| Package/Case | SMC |
| Current Rating | 3A |
| Forward Current | 4A |
| Halogen Free | Halogen Free |
| Height | 2.13mm |
| Lead Free | Lead Free |
| Length | 6.86mm |
| Max Forward Surge Current (Ifsm) | 100A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Max Reverse Current | 10uA |
| Max Reverse Voltage (DC) | 600V |
| Max Surge Current | 75A |
| Output Current | 3A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 100A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 75ns |
| Reverse Recovery Time-Max | 75ns |
| Reverse Voltage | 600V |
| RoHS Compliant | Yes |
| DC Rated Voltage | 600V |
| Width | 5.84mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MURS360T3G Datasheet
Download the complete datasheet for Onsemi MURS360T3G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

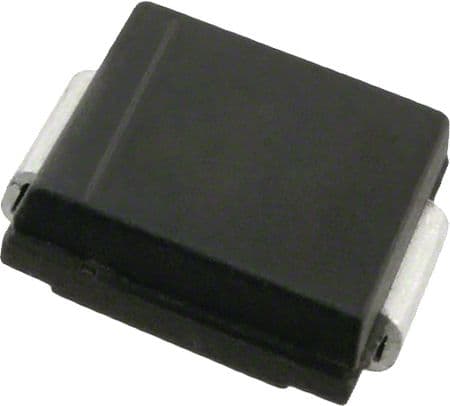

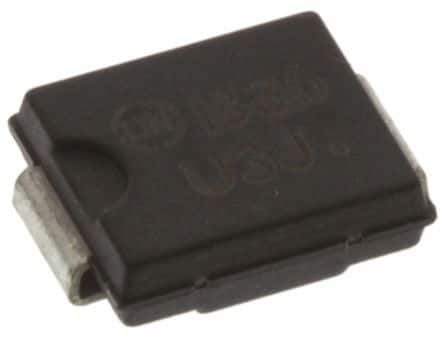

Product Images
