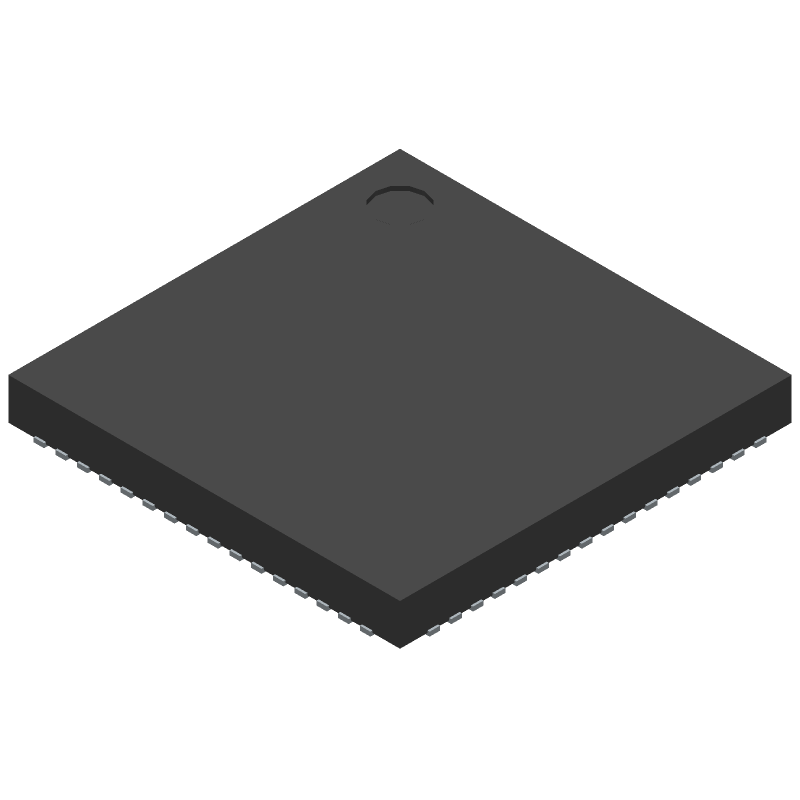

1:12 HCSL Clock ZDB/Fanout Buffer operating at 100/133 MHz, featuring 12 outputs and a 3.3V operating voltage. This surface mount integrated circuit offers a maximum propagation delay of 100ps and a maximum duty cycle of 55%. Encased in a QFN package, it supports PCIe applications and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NB3N1200KMNTXG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFN |
| Frequency | 133MHz |
| Height | 0.95mm |
| Input | Clock |
| Lead Free | Lead Free |
| Length | 9mm |
| Max Duty Cycle | 55% |
| Max Frequency | 133MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 330mA |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.135V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Outputs | 12 |
| Operating Supply Current | 330mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| PLL | Yes |
| Propagation Delay | 100ps |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Weight | 0.007277oz |
| Width | 9mm |
| RoHS | Compliant |
