ONSEMI

NB4N111KMNG

Clock Buffer, 1:10 Diff, 400MHz, 3.3V, HCSL, QFN

Onsemi

NB4N111KMNG

Name: NB4N111KMNG Onsemi
Brand: Onsemi
SKU: NB4N111KMNG

Clock Buffer, 1:10 Diff, 400MHz, 3.3V, HCSL, QFN

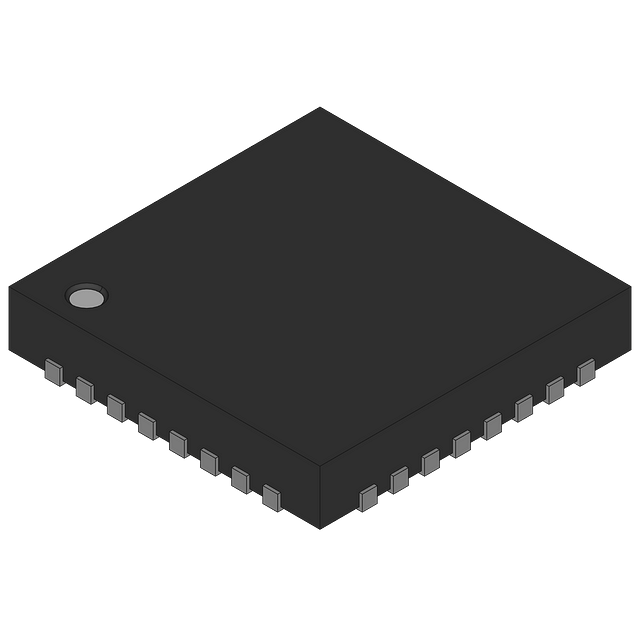

3.3V Clock Fanout Buffer, 1:10 Differential, featuring HCSL level output. This surface mount IC operates with a 3V to 3.6V supply voltage, supporting a maximum frequency of 400MHz. It offers 8 input channels and 20 output channels, with a propagation delay of 1.1ns. The component is halogen-free, lead-free, and RoHS compliant, packaged in a 5x5mm QFN with a height of 0.95mm.

Frequency400MHz

PackageQFN

MountingSurface Mount

PolarityInverting

Quick Jump:

Technical Specifications

Onsemi NB4N111KMNG technical specifications.

General

Package/Case	QFN
Frequency	400MHz
Halogen Free	Halogen Free
Height	0.95mm
Input	LVTTL
Lead Free	Lead Free
Length	5mm
Logic Function	Clock
Max Frequency	400MHz
Max Operating Temperature	70°C
Min Operating Temperature	-40°C
Max Supply Voltage	3.6V
Min Supply Voltage	3V
Mount	Surface Mount
Number of Channels	8
Number of Circuits	1
Number of Outputs	20
Operating Supply Voltage	3.3V
Package Quantity	260
Packaging	Rail/Tube
Polarity	Inverting
Propagation Delay	1.1ns
Radiation Hardening	No
RoHS Compliant	Yes
Supply Voltage-Nom	3.3V
Turn-On Delay Time	1100ps
Width	5mm
