ONSEMI

NB6HQ14MMNG

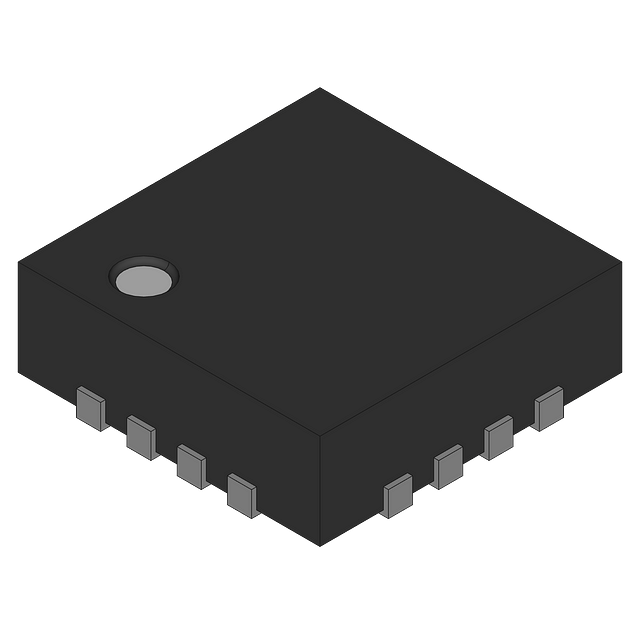

5GHz 6.5Gbps 1:4 CML Clock Buffer, 2.5V, QFN

Onsemi

NB6HQ14MMNG

Name: NB6HQ14MMNG Onsemi
Brand: Onsemi
SKU: NB6HQ14MMNG

5GHz 6.5Gbps 1:4 CML Clock Buffer, 2.5V, QFN

High-performance 1:4 CML clock/data fanout buffer supporting up to 5 GHz / 6.5 Gbps data rates. Features a 2.5 V operating supply voltage with a range of 2.375 V to 2.625 V. This surface mount component offers a 0.275 ns propagation delay and a 55% duty cycle. Packaged in a 3x3 mm QFN with 0.5 mm pitch, it operates from -40°C to 85°C and is RoHS and Halogen Free compliant.

Frequency5GHz

PackageQFN

MountingSurface Mount

PolarityNon-Inverting

Quick Jump:

Technical Specifications

Onsemi NB6HQ14MMNG technical specifications.

General

Package/Case	QFN
Data Rate	6.5Gbps
Duty Cycle	55%
Halogen Free	Halogen Free
Height	0.95mm
Input	CML
Lead Free	Lead Free
Length	3mm
Max Duty Cycle	55%
Max Frequency	5GHz
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Current	110mA
Max Supply Voltage	2.625V
Min Supply Voltage	2.375V
Mount	Surface Mount
Number of Circuits	1
Number of Input Lines	2
Number of Output Lines	8
Number of Outputs	8
Operating Supply Voltage	2.5V
Package Quantity	123
Packaging	Rail/Tube
Polarity	Non-Inverting
Propagation Delay	0.275ns
Quiescent Current	110mA
Radiation Hardening	No
RoHS Compliant	Yes
Series	ECLinPS MAX™
Supply Voltage-Nom	2.6V
Width	3mm
