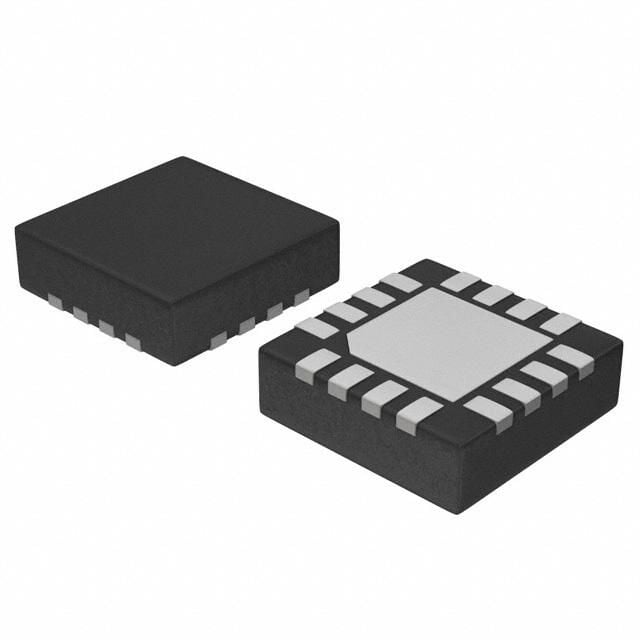

The Onsemi NB6L14MNG is a surface mount clock buffer IC with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It operates at a supply voltage of 3.3V with a quiescent current of 65mA and a supply current of 47mA. The device is RoHS compliant and features a propagation delay of 500ps and a turn-on delay time of 0.5ns. It is packaged in a QFN-16 package and is suitable for use in high-frequency applications up to 3GHz.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NB6L14MNG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFN |
| Frequency | 3GHz |
| Halogen Free | Halogen Free |
| Input | LVTTL |
| Lead Free | Lead Free |
| Max Frequency | 3GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.63V |
| Min Supply Voltage | 2.375V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Outputs | 8 |
| Package Quantity | 123 |
| Packaging | Rail/Tube |
| Propagation Delay | 500ps |
| Quiescent Current | 65mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | ECLinPS MAX™ |
| Supply Current | 47mA |
| Supply Voltage-Nom | 3.3V |
| Turn-On Delay Time | 0.5ns |
| RoHS | Compliant |
