The Onsemi NB7L32MMNG is a surface mount clock buffer with a maximum operating frequency of 14GHz and a maximum supply voltage of 3.465V. It has a minimum supply voltage of 2.375V and a propagation delay of 0.2ns. The device is packaged in a QFN EP package and is compliant with RoHS regulations. It operates over a temperature range of -40°C to 85°C.
Frequency14GHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi NB7L32MMNG technical specifications.
General
| Package/Case | QFN EP |
| Halogen Free | Halogen Free |
| Input | CML |
| Lead Free | Lead Free |
| Logic Function | Clock |
| Max Frequency | 14GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 2.375V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Package Quantity | 123 |
| Packaging | Rail/Tube |
| PLL | No |
| Propagation Delay | 0.2ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | NB7L32M |
| Turn-On Delay Time | 0.2ns |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NB7L32MMNG Datasheet
Download the complete datasheet for Onsemi NB7L32MMNG to view detailed technical specifications.
No datasheet is available for this part.

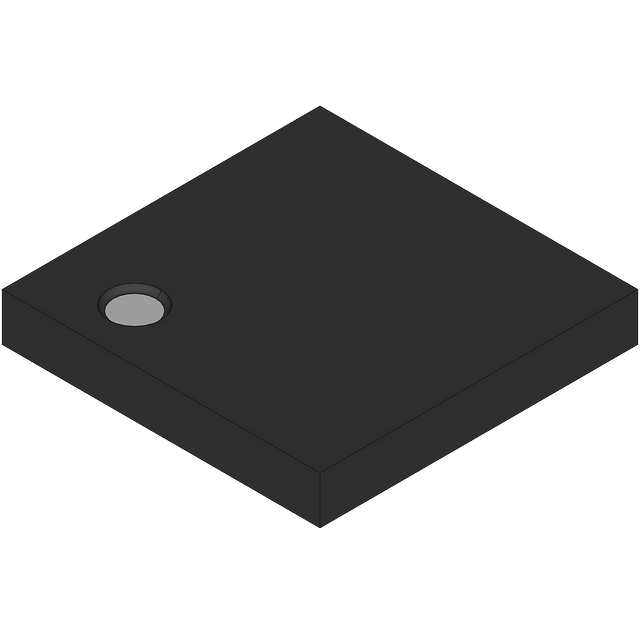

Product Images
