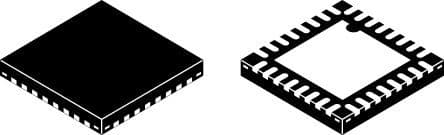

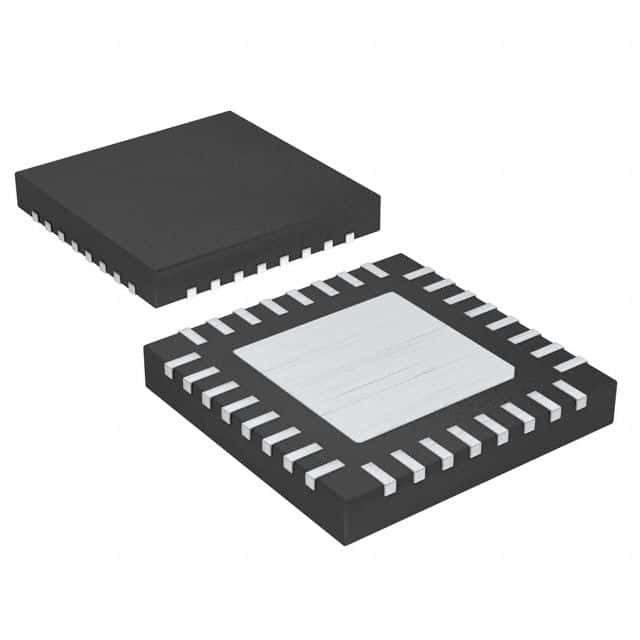

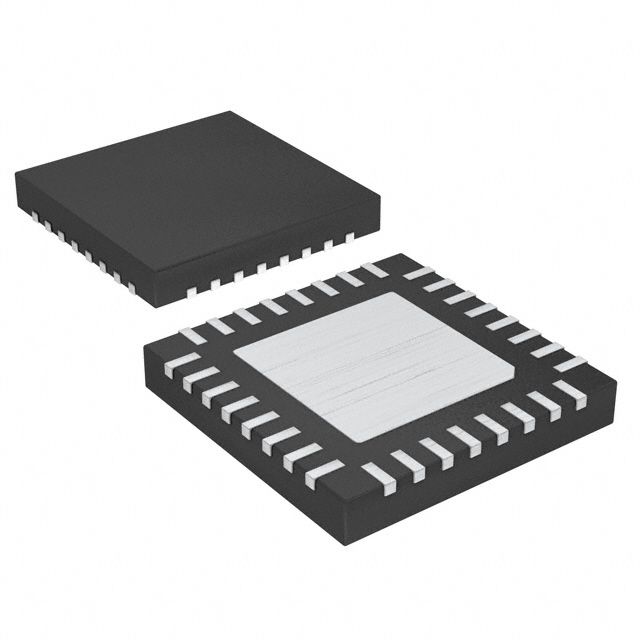

Differential clock buffer and data fanout buffer with a 4:1 input multiplexer. Supports data rates up to 11Gbps and frequencies up to 8GHz. Features two LVPECL outputs and operates from a 2.5V or 3.3V supply. Packaged in a 32-pin QFN (5x5mm) for surface mounting, this component is RoHS compliant and operates across a -40°C to 85°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NB7L572MNG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFN |
| Data Rate | 11Gbps |
| Frequency | 8GHz |
| Halogen Free | Halogen Free |
| Height | 0.95mm |
| Input | ECL |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Frequency | 8GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 110mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.375V |
| Mode of Operation | DIFFERENTIAL |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Outputs | 2 |
| Package Quantity | 74 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 100E |
| Supply Current | 90mA |
| Supply Voltage-Nom | 3.6V |
| Width | 5mm |
| RoHS | Compliant |
