Technical Specifications
Onsemi NB7L86MMNR2 technical specifications.
General
| Package/Case | QFN |
| High Level Output Current | -25mA |
| Lead Free | Contains Lead |
| Logic Function | Multi Function |
| Low Level Output Current | 25mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 2.375V |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Gates | 1 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 2 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Propagation Delay | 0.12ns |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Schmitt Trigger Input | No |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Onsemi NB7L86MMNR2 Datasheet
Download the complete datasheet for Onsemi NB7L86MMNR2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

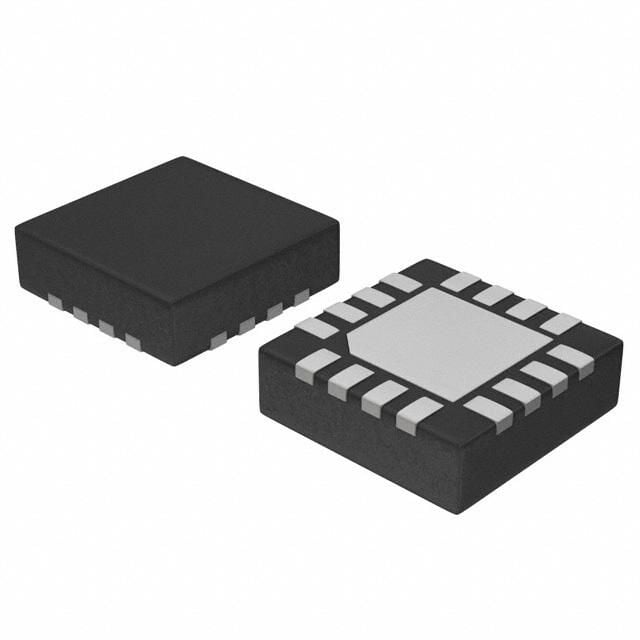

Product Images
